Question: PROBLEM # 1 : A 1 m long round cantilever bar of is subjected to torsion T = ( 4 0 0 ) N *

PROBLEM # 1:

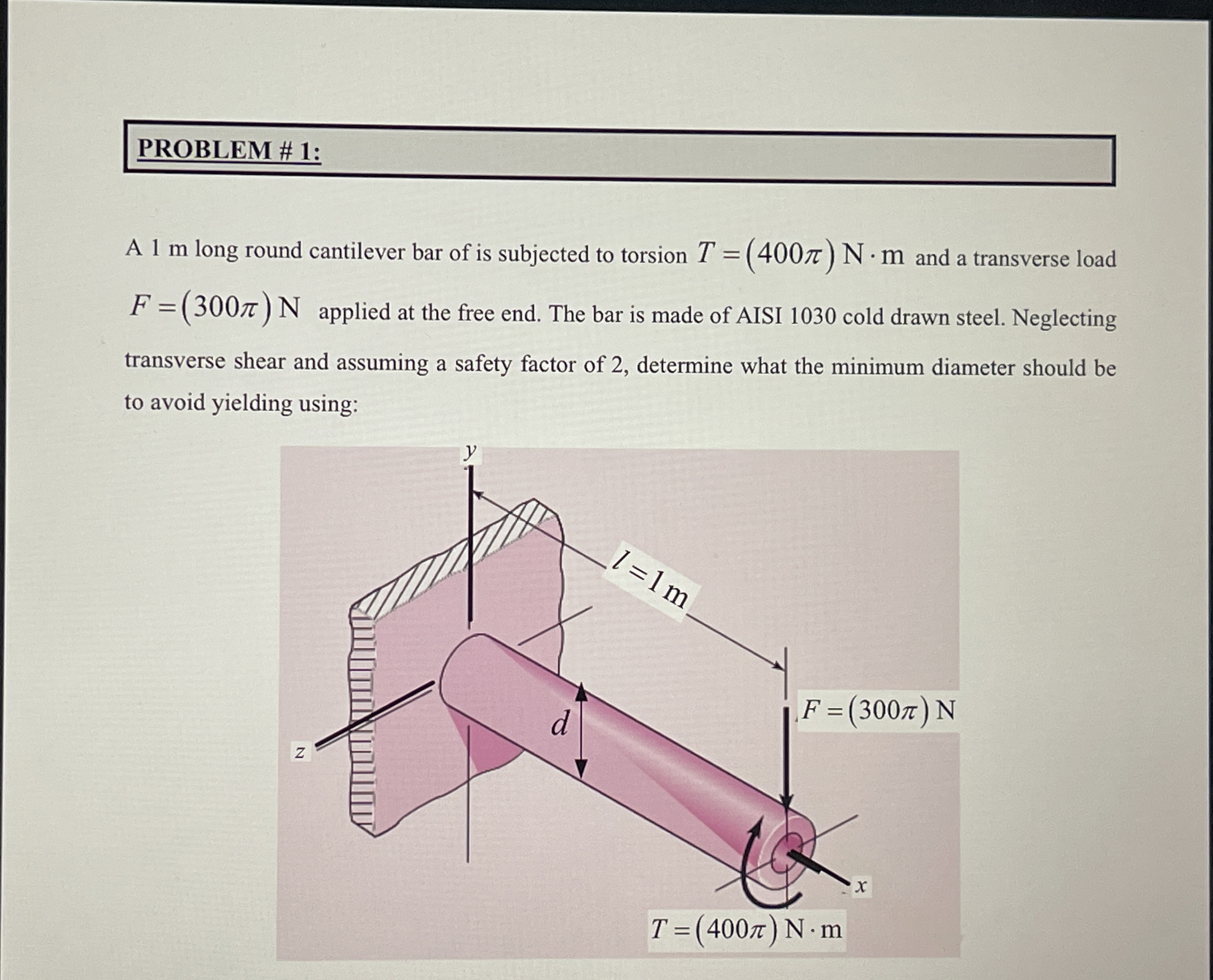

A 1 m long round cantilever bar of is subjected to torsion T=(400)N*m and a transverse load F=(300)N applied at the free end. The bar is made of AISI 1030 cold drawn steel. Neglecting transverse shear and assuming a safety factor of 2, determine what the minimum diameter should be to avoid yielding using:
PROBLEM # 1 : A 1 m long round cantilever bar of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
