Question: Problem #1) (a) (12 points) What is the equivalent resistance of the circuit shown in the figure below? All resistances are accurate to 3 significant

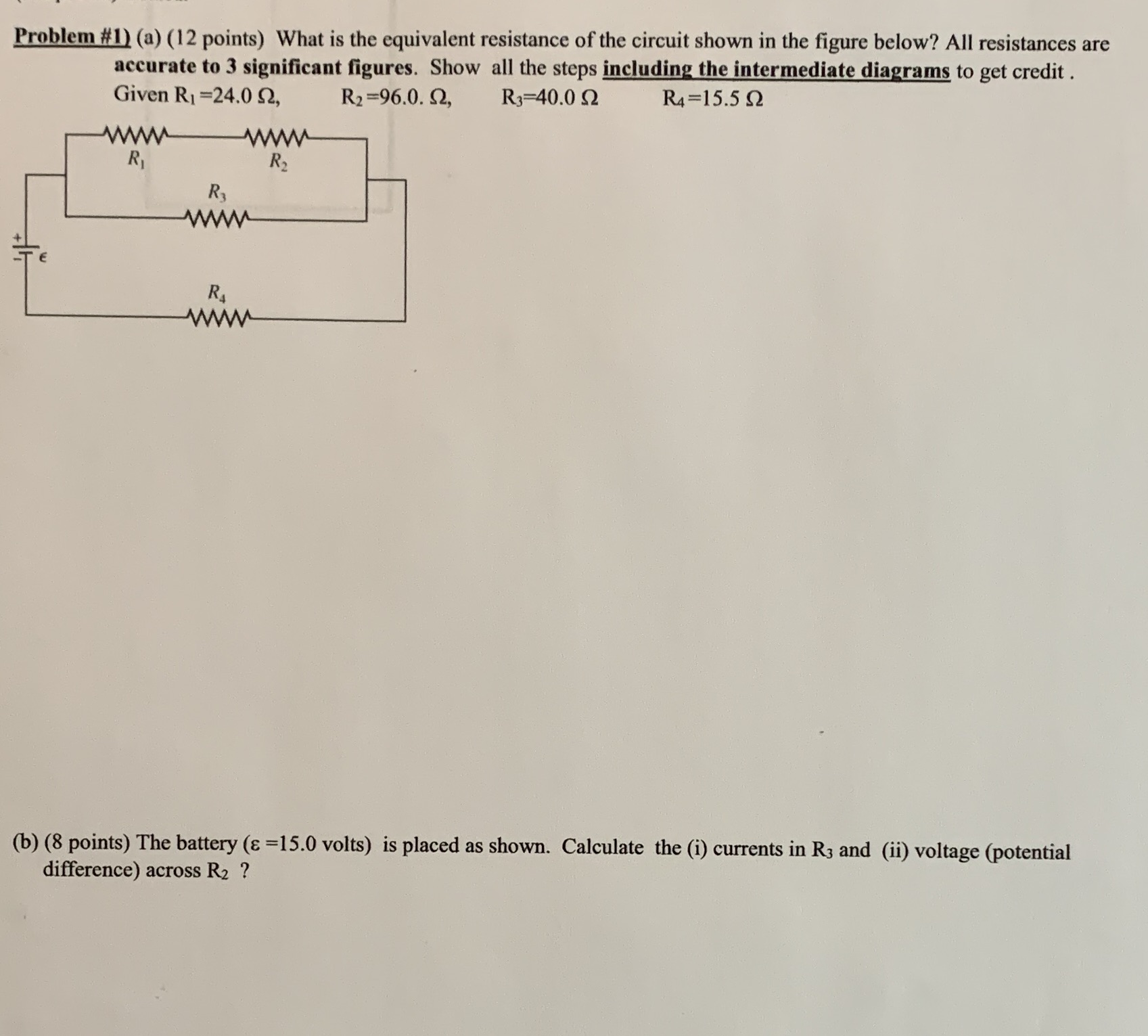

Problem #1) (a) (12 points) What is the equivalent resistance of the circuit shown in the figure below? All resistances are accurate to 3 significant figures. Show all the steps including the intermediate diagrams to get credit . Given R1=24.0 02, R2 =96.0. 12, R3=40.0 02 R4=15.5 0 R1 R2 RA (b) (8 points) The battery (& =15.0 volts) is placed as shown. Calculate the (i) currents in R3 and (ii) voltage (potential difference) across R2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
