problem 1

A

B

C

problem 2

A

B

C

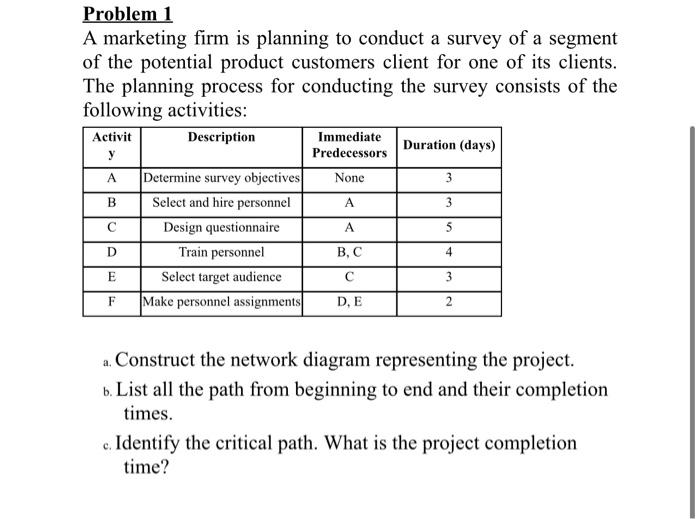

Problem 1 A marketing firm is planning to conduct a survey of a segment of the potential product customers client for one of its clients. The planning process for conducting the survey consists of the following activities: a. Construct the network diagram representing the project. b. List all the path from beginning to end and their completion times. c. Identify the critical path. What is the project completion time? Problem 2 The management of a factory is going to erect a maintenance building with a connecting electrical generator and water tank. The activities, activity descriptions, and estimated durations are given in the following table: a. Draw the network diagram representing this project. b. Use the forward and backward pass method to label the network in full. Give a full schedule table (ES, EF, LS, LF, and slack) for each activity. c. Identify the critical path. What is the project completion time
