Question: Problem 1 : A thin rectangular plate 0 x a , 0 y b , has the following boundary conditions: T = a = b

Problem 1:

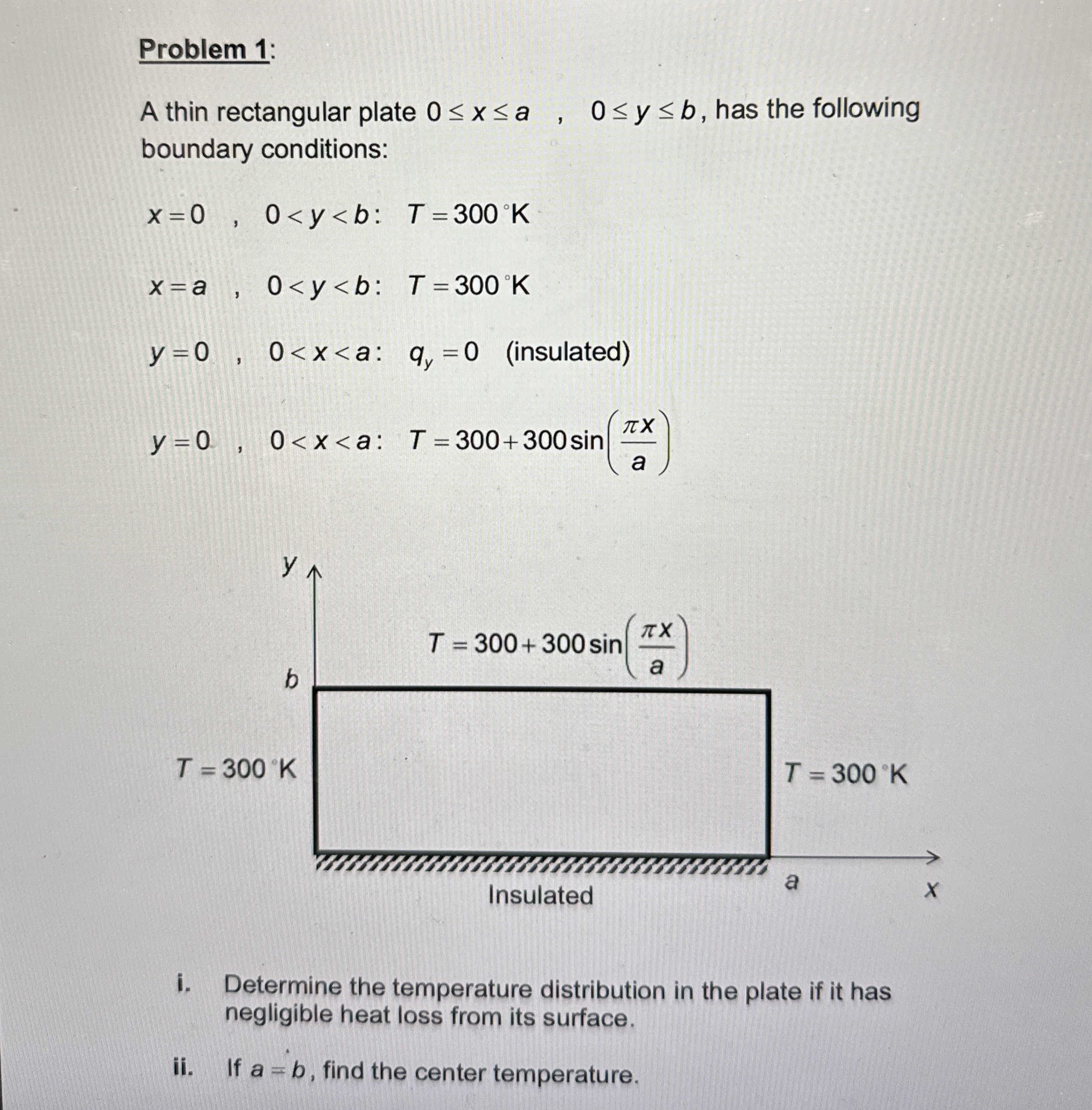

A thin rectangular plate 0xa,0yb, has the following boundary conditions:
T=a=bx=0,0
T=
i. Determine the temperature distribution in the plate ifit has negligible heat loss from its surface.
ii.Ifa=b, find the center temperature.
Problem 1 : A thin rectangular plate 0 x a , 0 y

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
