Problem $1$

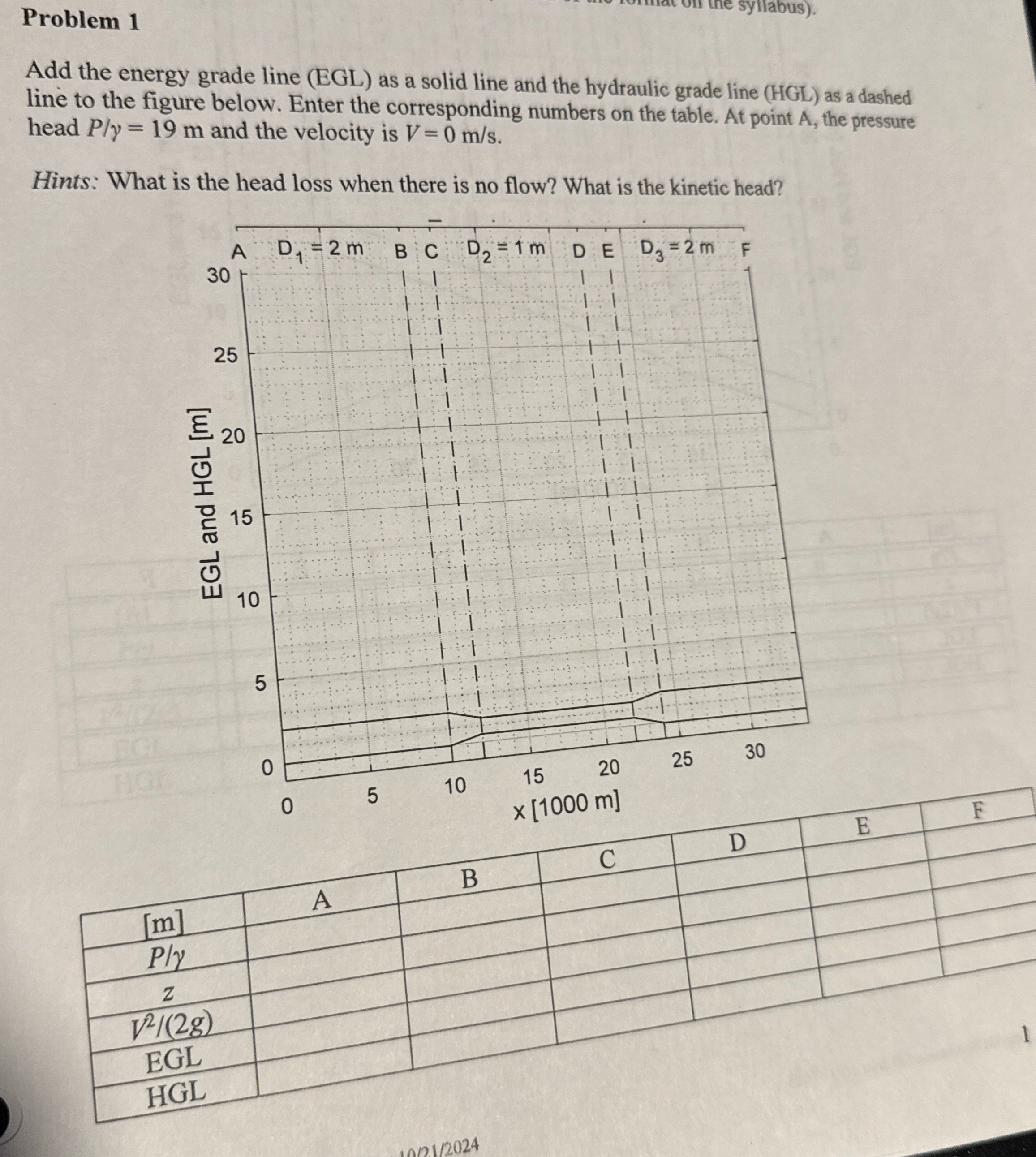

Add the energy grade line $($EGL$)$ as a solid line and the hydraulic grade line $($HGL$)$ as a dashed line to the figure below. Enter the corresponding numbers on the table. At point A$,$ the pressure head $\frac{P}{}=19m$ and the velocity is $V=0\frac{m}{s}.$

Hints: What is the head loss when there is no flow? What is the kinetic head?

$$

$1$

EGL

HGL
