Question: Problem 1 continued '16. Draw the network diagram below using activity on the node and list: ES, EF, LS, LF, and mean of an activity's

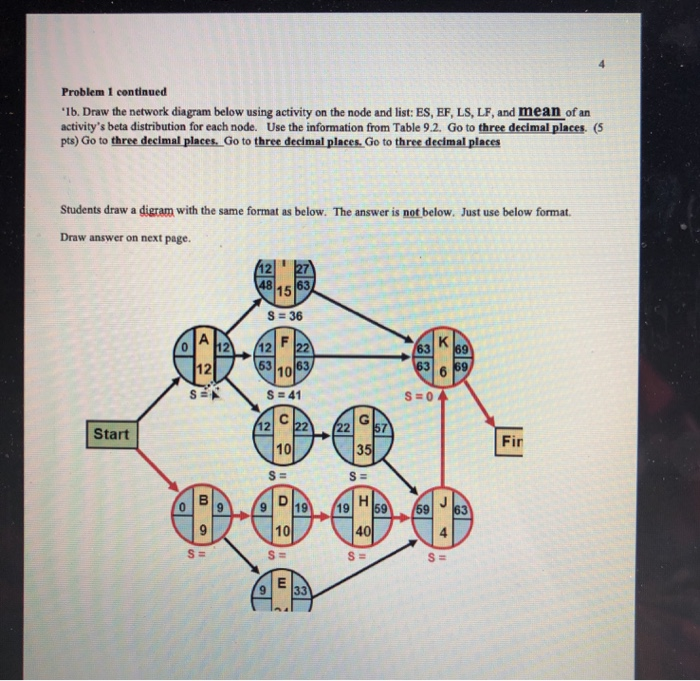

Problem 1 continued '16. Draw the network diagram below using activity on the node and list: ES, EF, LS, LF, and mean of an activity's beta distribution for each node. Use the information from Table 9.2. Go to three decimal places. (5 pts) Go to three decimal places. Go to three decimal places. Go to three decimal places Students draw a digram with the same format as below. The answer is not below. Just use below format. Draw answer on next page. . X 69 Start S = I Problem 1 continued '16. Draw the network diagram below using activity on the node and list: ES, EF, LS, LF, and mean of an activity's beta distribution for each node. Use the information from Table 9.2. Go to three decimal places. (5 pts) Go to three decimal places. Go to three decimal places. Go to three decimal places Students draw a digram with the same format as below. The answer is not below. Just use below format. Draw answer on next page. . X 69 Start S =
