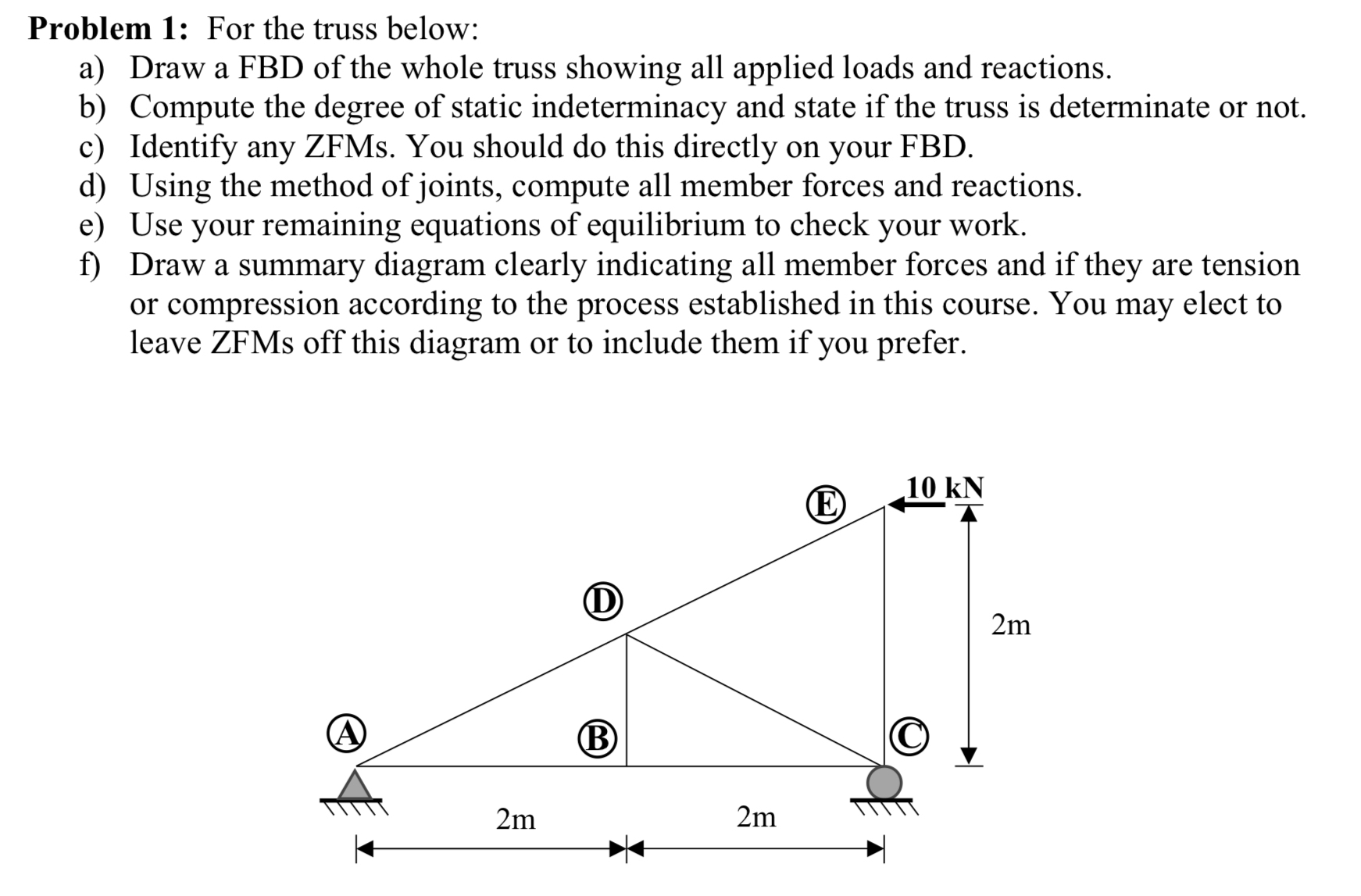

Problem $1$: For the truss below:

a$)$ Draw a FBD of the whole truss showing all applied loads and reactions.

b$)$ Compute the degree of static indeterminacy and state if the truss is determinate or not.

c$)$ Identify any ZFMs$.$ You should do this directly on your FBD$.$

d$)$ Using the method of joints, compute all member forces and reactions.

e$)$ Use your remaining equations of equilibrium to check your work.
