Question: Problem 1 i - Determine the torque T that causes a maximum shearing stress of 5 0 MPa in the hollow cylindrical steel shaft shown.

Problem 1

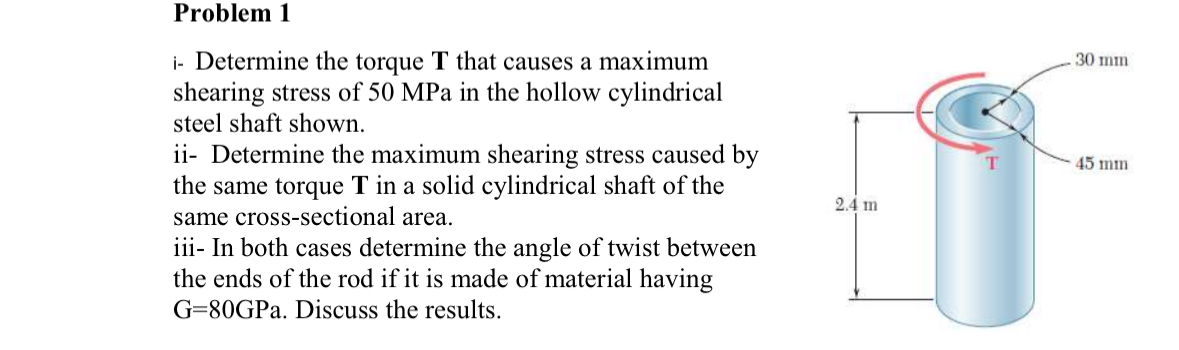

i- Determine the torque T that causes a maximum shearing stress of 50 MPa in the hollow cylindrical steel shaft shown.
ii- Determine the maximum shearing stress caused by the same torque T in a solid cylindrical shaft of the same cross-sectional area. iii- In both cases determine the angle of twist between the ends of the rod if it is made of material having G=80GPa. Discuss the results.
Problem 1 i - Determine the torque T that causes

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
