Question: Problem 1 ) Suppose you are using an n - channel enhancement - mode MOSFET to control a large amount of current through a magnet,

Problem 1)

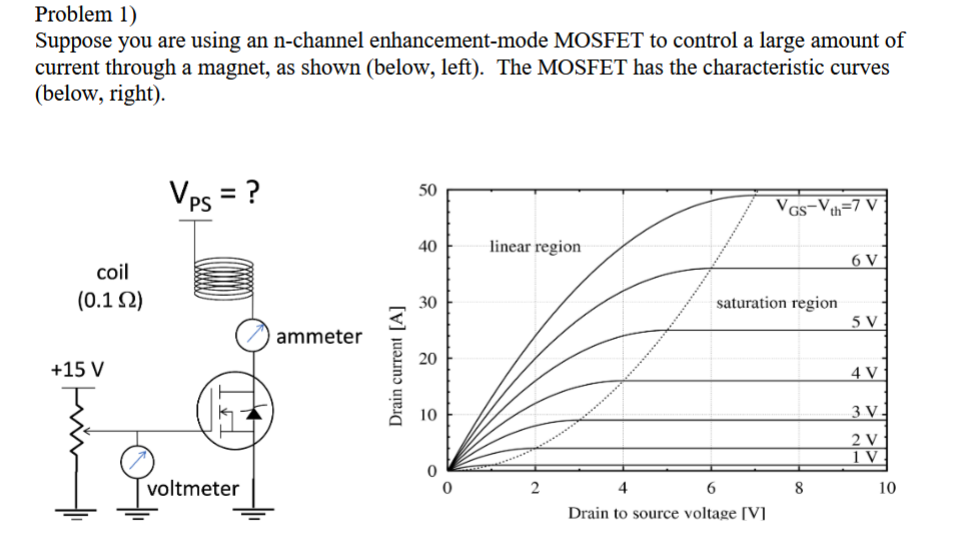

Suppose you are using an n-channel enhancement-mode MOSFET to control a large amount of current through a magnet, as shown (below, left). The MOSFET has the characteristic curves (below, right).
Approximately what power supply voltage should you use to drive 20 A through the magnet, but
dissipate the least amount of power in your MOSFET and operating the MOSFET in the
"saturation region".
Problem 1 ) Suppose you are using an n - channel

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
