Question: Consider the process with the transfer function as given below which is open - loop unstable: Can a PI controller satisfy the necesaary conditions for

Consider the process with the transfer function as given below which is open-loop unstable: Can a PI controller satisfy the necesaary conditions for stability of this process, if ?Question 1

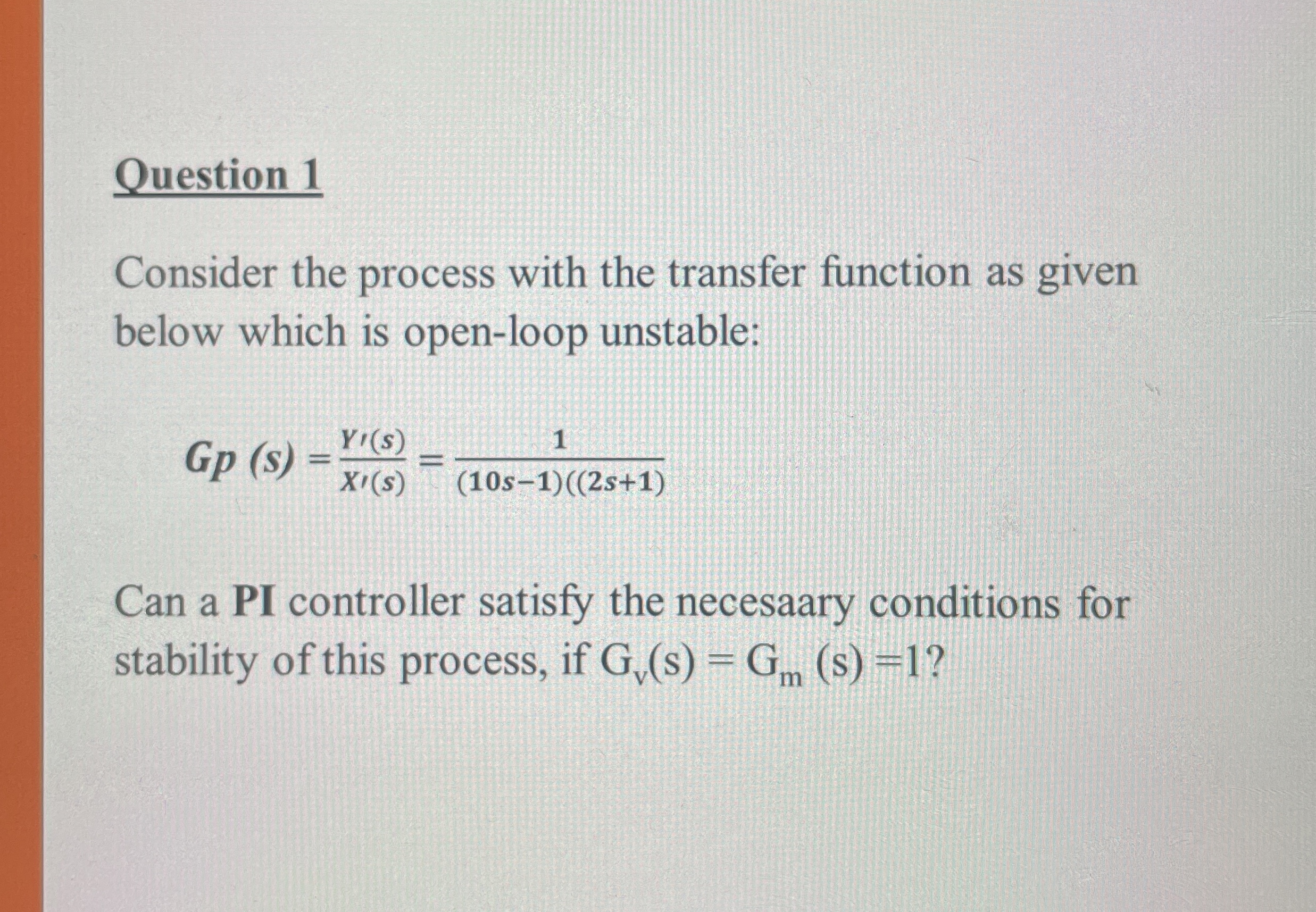

Consider the process with the transfer function as given below which is open-loop unstable:
Can a PI controller satisfy the necesaary conditions for stability of this process, if Gv(s)=Gm(s)=1?
Consider the process with the transfer function

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
