Question: Problem 1 ) The variable resistor R 0 in the circuit is adjusted until it absorbs maximum power from the circuit. a ) Find the

Problem 1)

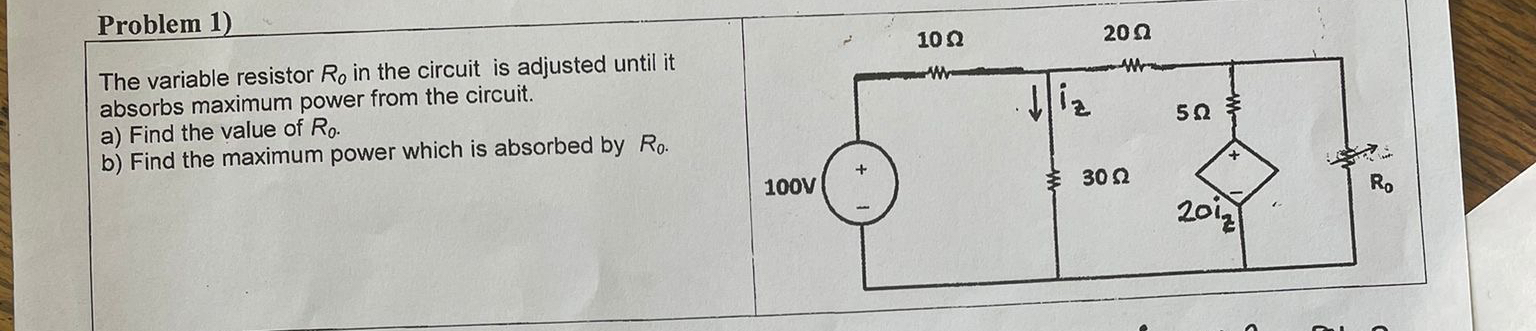

The variable resistor R0 in the circuit is adjusted until it absorbs maximum power from the circuit.
a) Find the value of R0.
b) Find the maximum power which is absorbed by R0.
Problem 1 ) The variable resistor R 0 in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
