Question: Problem [ 9 ] 2 points > The variable resistor R in the circuit is adjusted until it absorbs the maximum average power. Find R

Problem [9]2 points>

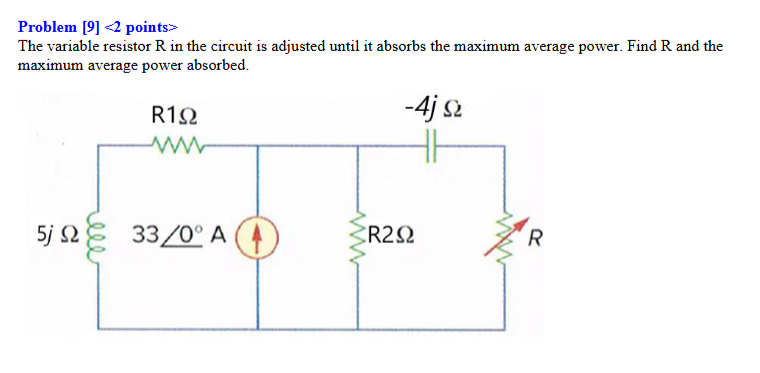

The variable resistor R in the circuit is adjusted until it absorbs the maximum average power. Find R and the
maximum average power absorbed.
Solve when R1 is 14 and R2 is 14
Problem [ 9 ] < 2 points > The variable resistor

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

Q:

The variable resistor R in the circuit of Fig. 11.50 is adjusted until it absorbs the maximum average power. Find R and the maximum average power absorbed. -j100 2 100 2 100 2 100/0 V (+ j100 2 lle

Q:

The variable resistor R in the circuit of Fig. 11.50 is adjusted until it absorbs the maximum average power. Find R and the maximum average power absorbed. 3 6

Q:

Problem 4 20 50 The variable resistor in the circuit in fig. 4 is adjusted for maximum power transfer to Ra. is 40 a. Find the value of Ro. 24 V 0.85 VA Ro b. Find the maximum power that can be...

Q:

The variable resistor R in Fig. 4.133 is adjusted until it absorbs the maximum power from the circuit. (a) Calculate the value of R for maximum power. (b) Determine the maximum power absorbed by R....
