Question: Problem 1 : Use nodal analysis to determine the quantities V 1 , V 2 , and I for the circuit shown below: Ans: V

Problem 1:

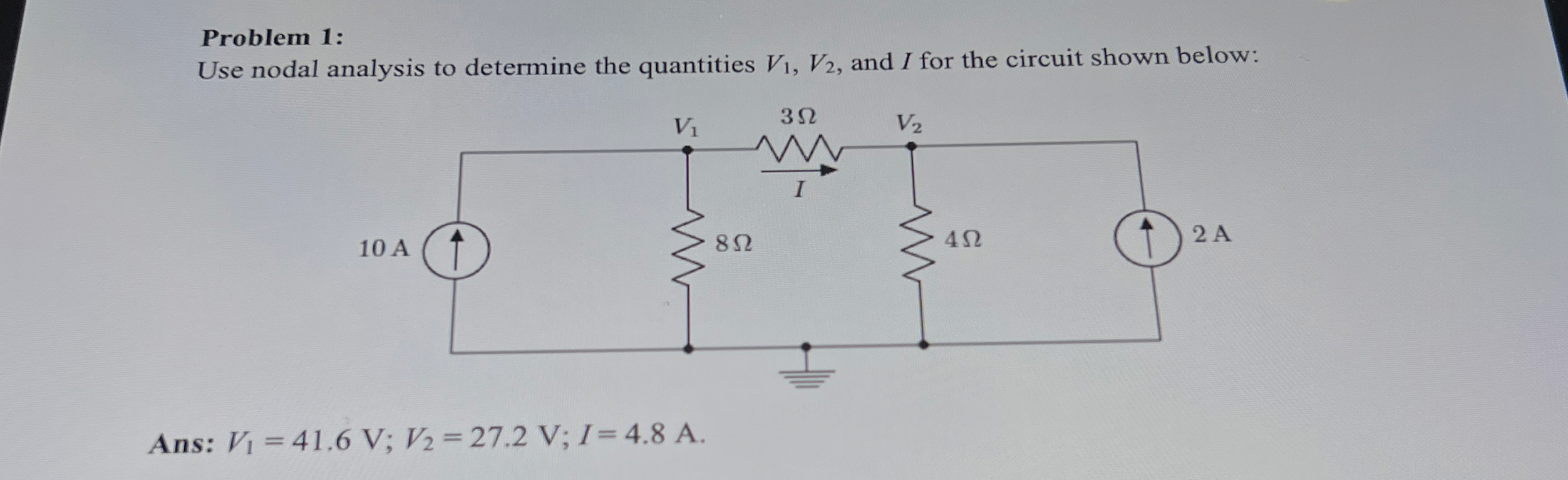

Use nodal analysis to determine the quantities V1,V2, and I for the circuit shown below:
Ans: V1=41.6V;V2=27.2V;I=4.8A.
Problem 1 : Use nodal analysis to determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
