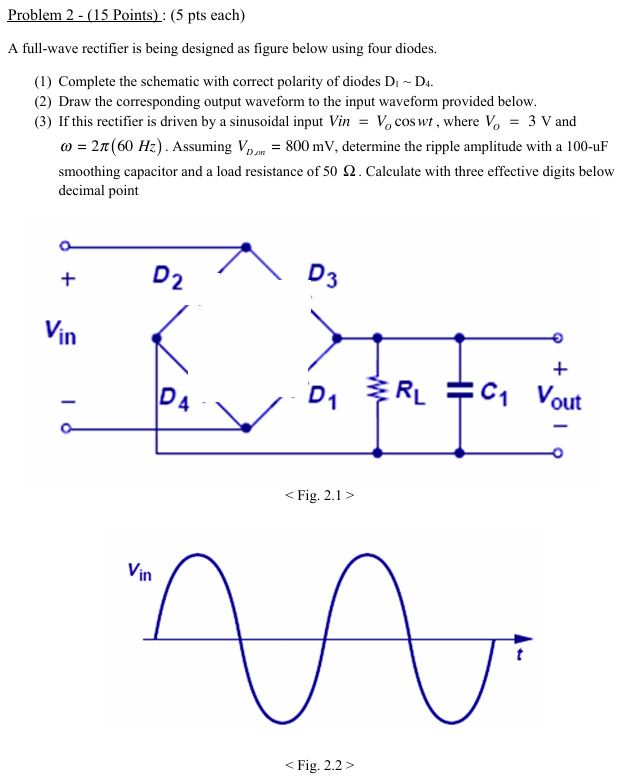

Problem $2-(15$ Points$)$: $(5$ pts each$)$

A full$-$wave rectifier is being designed as figure below using four diodes.

$(1)$ Complete the schematic with correct polarity of diodes D$\_(1)$D$\_(4).$

$(2)$ Draw the corresponding output waveform to the input waveform provided below.

$(3)$ If this rectifier is driven by a sinusoidal input Vin$=$V$\_($o$)$coswt$,$ where V$\_($o$)=3$V and

$\backslash$omega $=2\backslash$pi $(60$Hz$).$ Assuming V$\_($Den$)=800$mV$,$ determine the ripple amplitude with a $100-$uF

smoothing capacitor and a load resistance of $50\backslash$Omega $.$ Calculate with three effective digits below

decimal point
