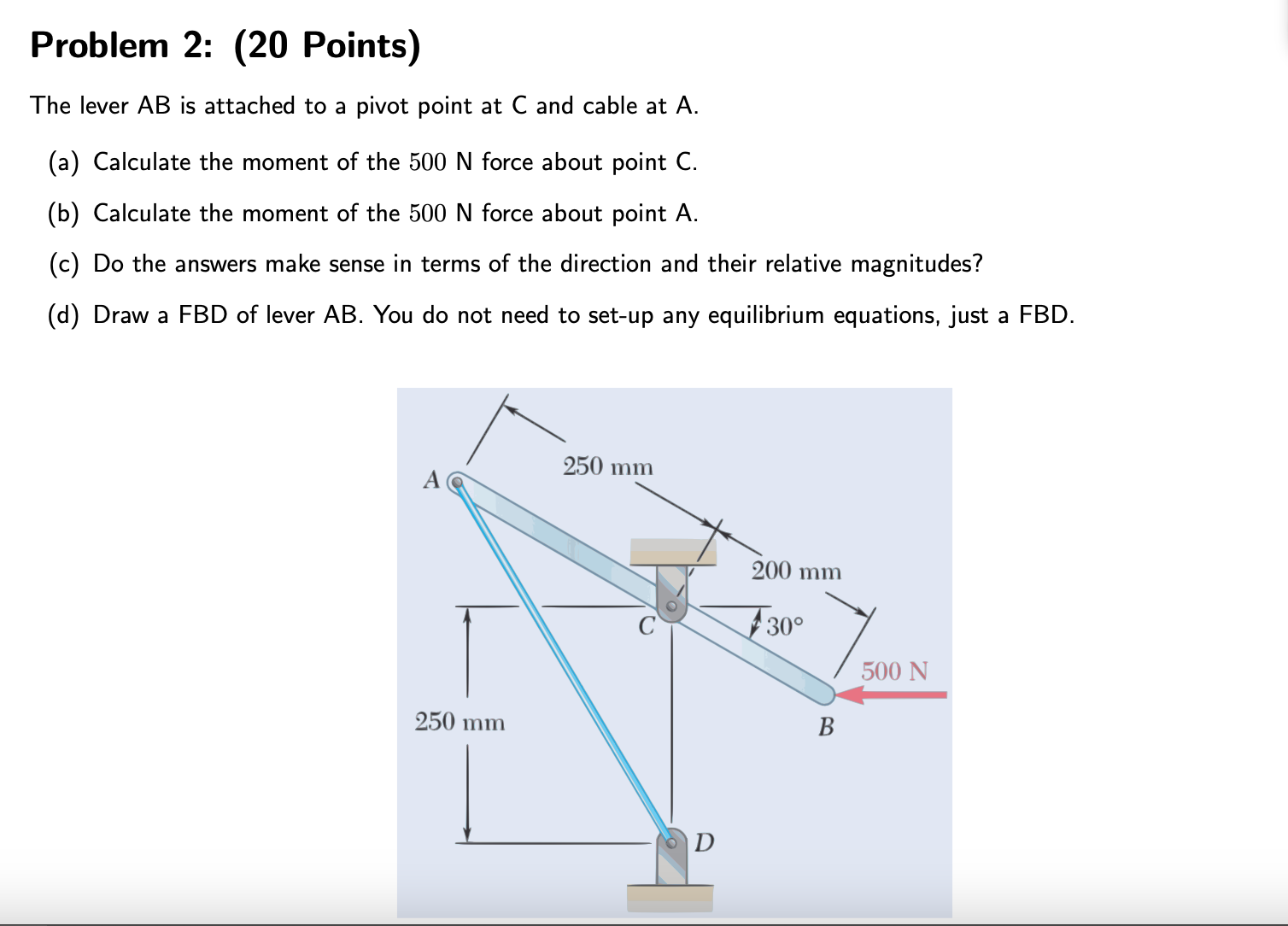

Problem $2$: $(20$ Points$)$

The lever AB is attached to a pivot point at C and cable at A$.$

$($a$)$ Calculate the moment of the $500$ N force about point C $.$

$($b$)$ Calculate the moment of the $500$ N force about point A $.$

$($c$)$ Do the answers make sense in terms of the direction and their relative magnitudes?

$($d$)$ Draw a FBD of lever AB$.$ You do not need to set$-$up any equilibrium equations, just a FBD$.$
