Question: Problem 2 . 2 : ( 1 0 points ) In the circuit of Fig. 2 . 2 , R L is adjusted to receive

Problem 2.2: (10 points)

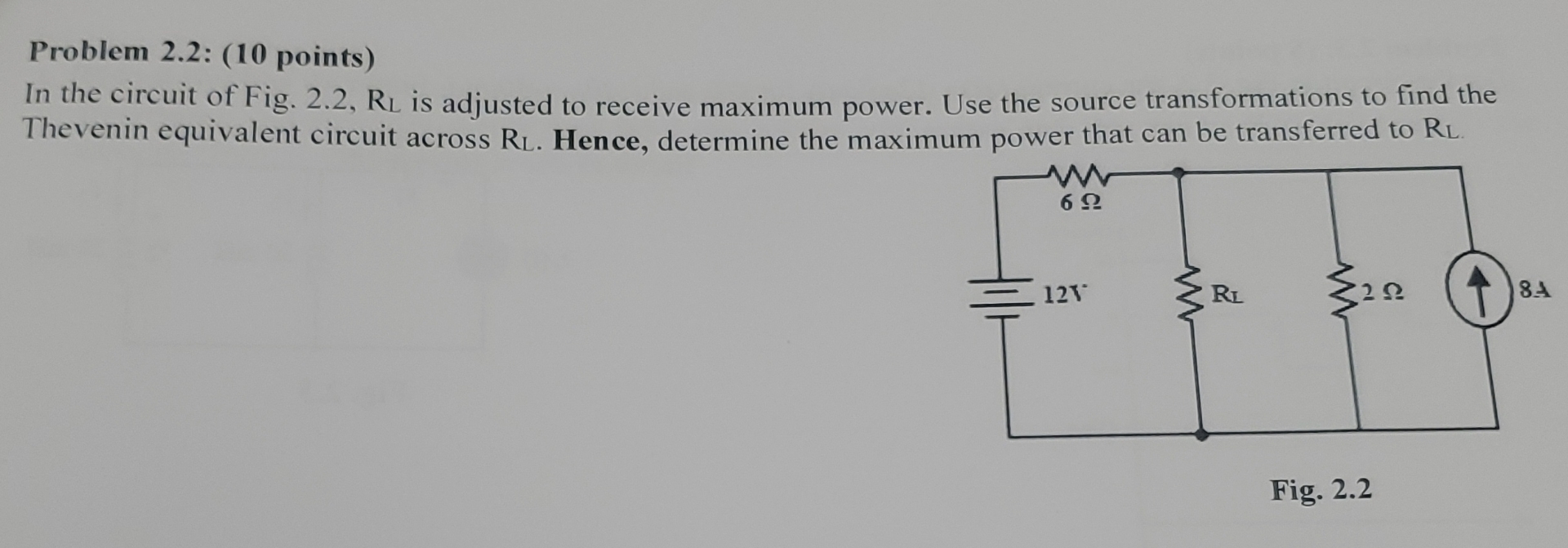

In the circuit of Fig. 2.2,RL is adjusted to receive maximum power. Use the source transformations to find the Thevenin equivalent circuit across RL. Hence, determine the maximum power that can be transferred to RL.
Problem 2 . 2 : ( 1 0 points ) In the circuit of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
