Question: Problem 2 ( 2 5 points ) : Determine the smallest moment of inertia I required for the beam shown below so that its maximum

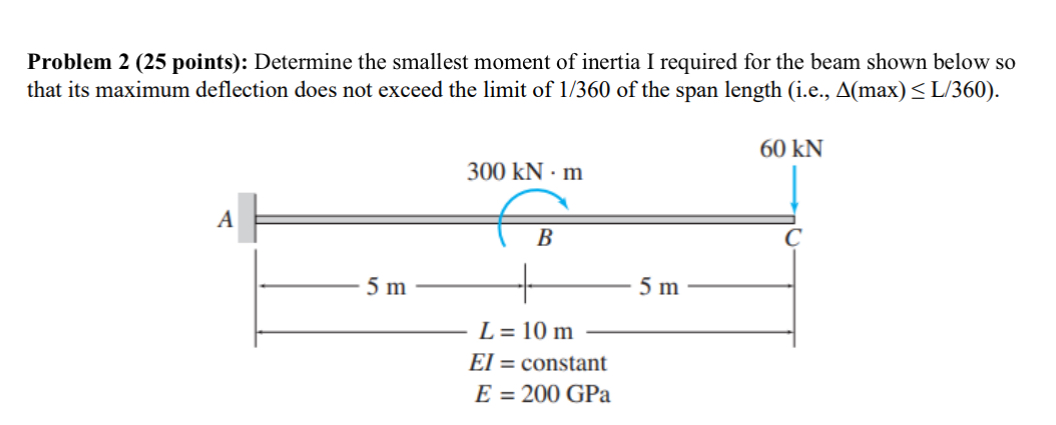

Problem 2(25 points): Determine the smallest moment of inertia I required for the beam shown below so that its maximum deflection does not exceed the limit of 1360 of the span length (i.e.,(max)L360).
Please help!
Problem 2 ( 2 5 points ) : Determine the smallest

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
