Question: Problem 2 For the beam shown below, calculate the support reaction forces at A , B and C due to the applied moment M c

Problem 2

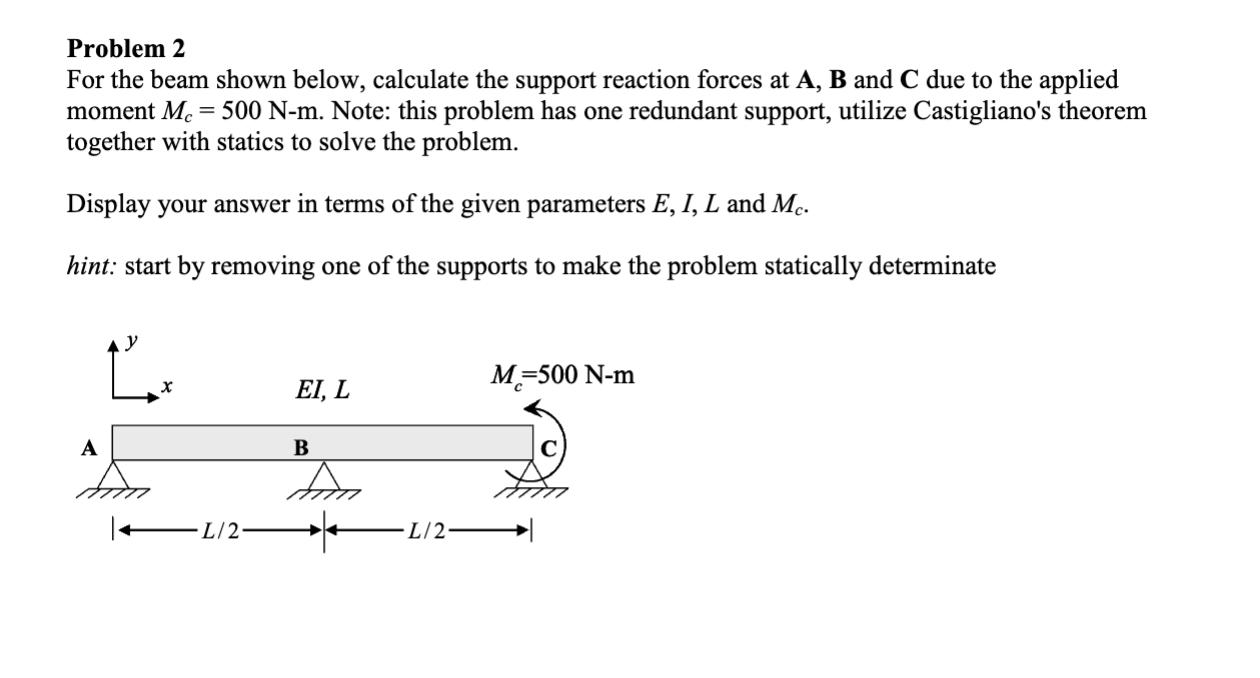

For the beam shown below, calculate the support reaction forces at A,B and C due to the applied
moment Mc=500N-m. Note: this problem has one redundant support, utilize Castigliano's theorem
together with statics to solve the problem.
Display your answer in terms of the given parameters E,I,L and Mc.
hint: start by removing one of the supports to make the problem statically determinate
