Question: Problem 2 : 2 5 points Using the method of sections, find the forces in members BD and BC , and state whether they are

Problem 2: 25 points

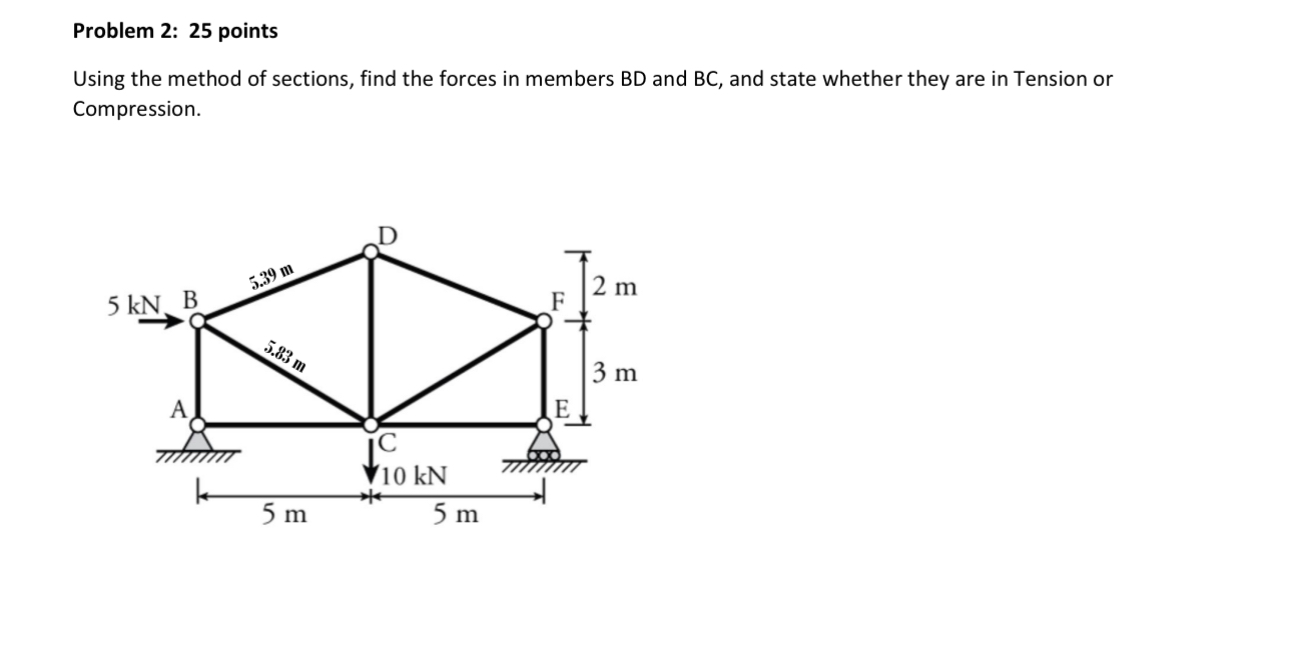

Using the method of sections, find the forces in members BD and BC, and state whether they are in Tension or Compression.
Problem 2 : 2 5 points Using the method of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Using the method of sections, find the forces in members BD and BC , and state whether they are in Tension or Compression.
