Question: Using the method of sections, determine the forces in members DC, FC, and FA. State whether they are in tension or compression. F 2 m

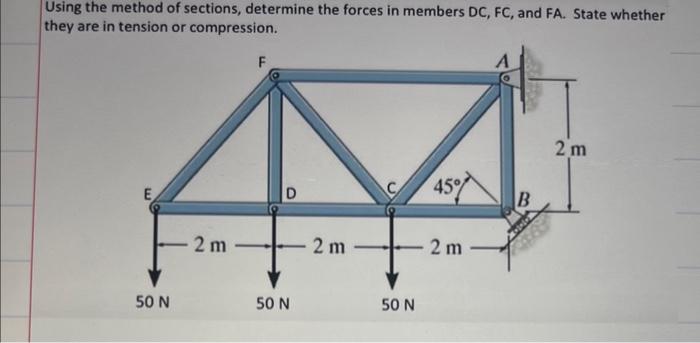

Using the method of sections, determine the forces in members DC, FC, and FA. State whether they are in tension or compression. F 2 m D 45 m B 2 m 2 m 2 m 50 N 50 N 50 N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Using the method of sections, find the forces in members BD and BC , and state whether they are in Tension or Compression.

Using the Method of Sections, find the forces in members D E , E l , and H I . P = 5 0 0 l b , and state whether it is in tension or compression.

Problem 2 : 2 5 points Using the method of sections, find the forces in members BD and BC , and state whether they are in Tension or Compression.

( 1 0 points total ) Consider the 2 - D truss structure shown below. The support reaction at " A " is A y = 8 , 4 0 0 l b s ( up ) and the support reactions at " K " are K x = 0 lbs and K y = 3 , 6 0...

Q# 1 . The truss shown in the figure below is mounted to a wall via a pin at A and a roller at C . a ) Determine the reactions at A and C . b ) Using the method of joints, determine the forces in...

QUESTION #4 Trusses 3 m. BY 3 m 5 kN 4 kN 3 m 3 m Figure 3 5 m [21 marks] As shown in Figure 3, a truss is pinned to a vertical wall D and rolls on a horizontal surface at E. (a) Determine the...

Problem 1 The truss is supported by a pin at A and a roller at G . A 6 kN load is applied at D . A . Using the method of sections, determine the forces in members C E , D E , and D F . Also stat o k...

Can somebody plz explian both problems plz Trusses 4 ) For the truss shown, a . calculate the reactions at A and E , b . using the method of joints, determine the forces in each member at Joint A , c...

The truss below is supported by a pin at A and a roller at G . Show all diagrams and required calculations for full credit. ( a ) Using the method of sections, determine the forces in members EG , EF...
