Question: Problem 2 - ( 3 0 points ) Determine the support reactions and draw the bending moment and shear diagrams of the beam shown in

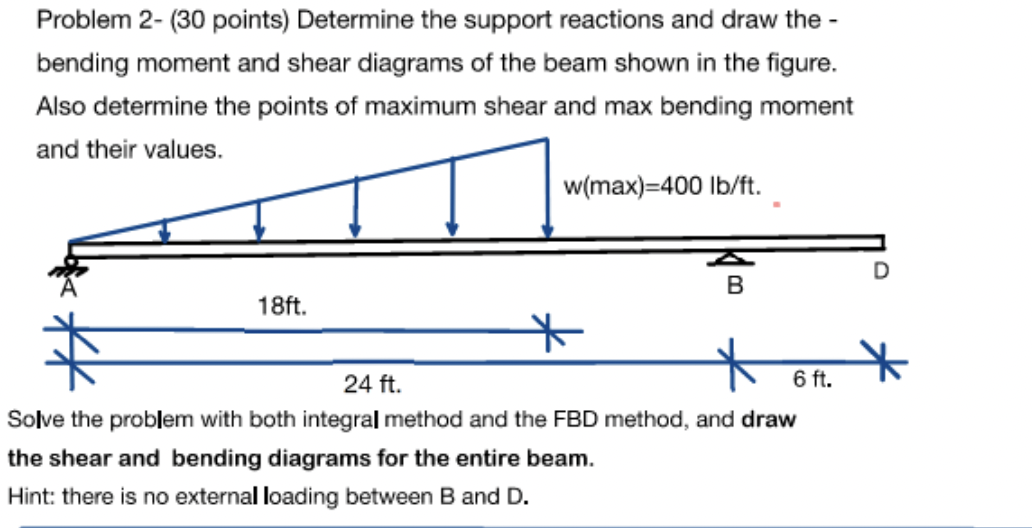

Problem 2-(30 points) Determine the support reactions and draw the bending moment and shear diagrams of the beam shown in the figure.
Also determine the points of maximum shear and max bending moment and their values.
Solve the problem with both integral method and the FBD method, and draw the shear and bending diagrams for the entire beam.
Hint: there is no external loading between B and D .
Problem 2 - ( 3 0 points ) Determine the support

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
