Question: Problem 2 ( 4 0 points ) A prestressed concrete beam supports a live load of 0 . 2 7 kip s f t over

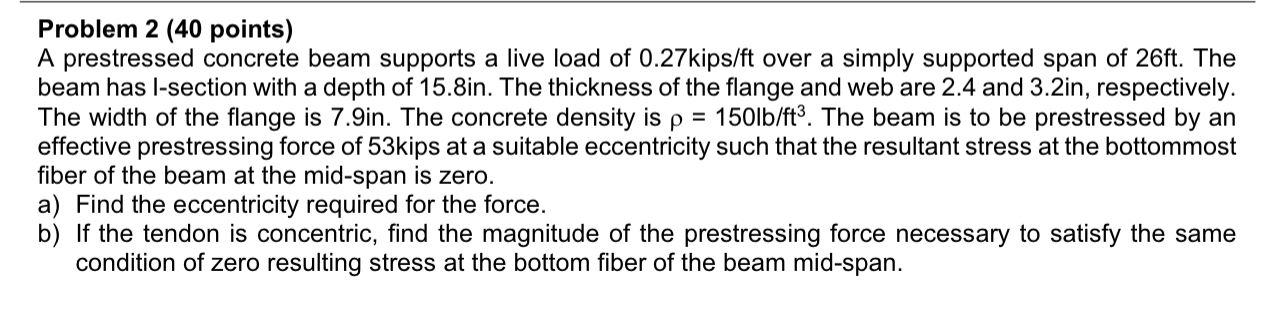

Problem 2(40 points)
A prestressed concrete beam supports a live load of 0.27kipsft over a simply supported span of 26ft. The beam has I-section with a depth of 15.8in. The thickness of the flange and web are 2.4 and 3.2in, respectively. The width of the flange is 7.9in. The concrete density is =150lbft3. The beam is to be prestressed by an effective prestressing force of 53kips at a suitable eccentricity such that the resultant stress at the bottommost fiber of the beam at the mid-span is zero.
a) Find the eccentricity required for the force.
b) If the tendon is concentric, find the magnitude of the prestressing force necessary to satisfy the same condition of zero resulting stress at the bottom fiber of the beam mid-span.
Problem 2 ( 4 0 points ) A prestressed concrete
