Question: Problem 2 4 . 3 2 ( Stationing every 5 0 ft instead of full stations ) ( 1 0 points ) Highway curve with

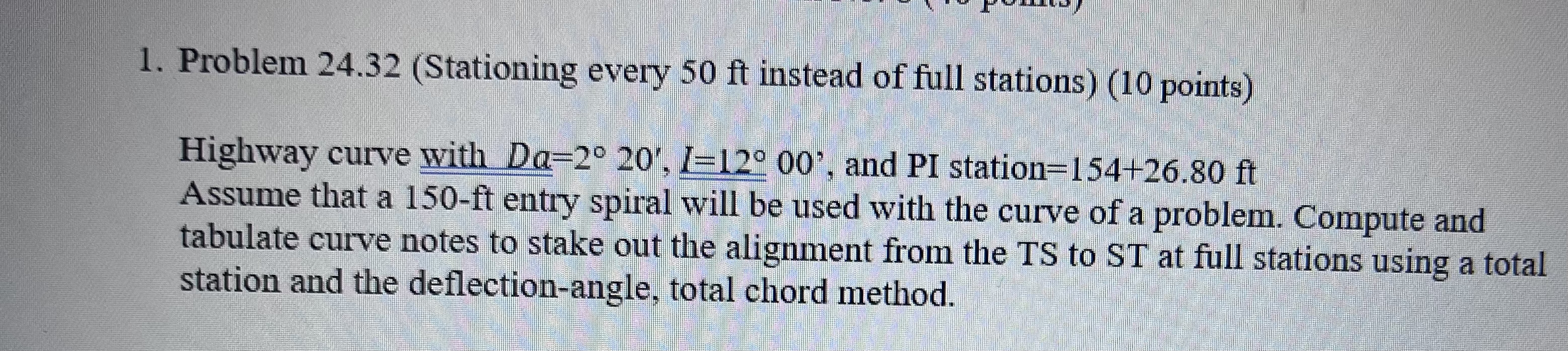

Problem 24.32(Stationing every 50 ft instead of full stations)(10 points)
Highway curve with Da=220',I=1200', and PI station =154+26.80ft Assume that a 150-ft entry spiral will be used with the curve of a problem. Compute and tabulate curve notes to stake out the alignment from the TS to ST at full stations using a total station and the deflection-angle, total chord method.
Problem 2 4 . 3 2 ( Stationing every 5 0 ft
