Question: ( Problem 2 5 . 1 1 ) For the circuit in Fig. 2 5 . 3 1 e = 2 4 + 3 0

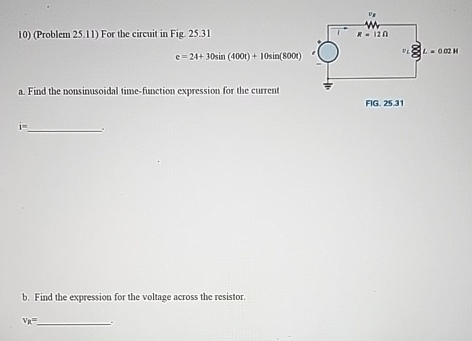

(Problem 25.11) For the circuit in Fig. 25.31
e=24+30sin(400t)+10sin(800t)
a. Find the nonsinusoidal time-function expression for the current
FIG. 25.31
i
b. Find the expression for the voltage across the resistor.
vR=
( Problem 2 5 . 1 1 ) For the circuit in Fig. 2 5

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
