Question: Problem 2: (8 points) Define AV = VB - VA. What is AV given points A and B in the circuit below? 4 12 B

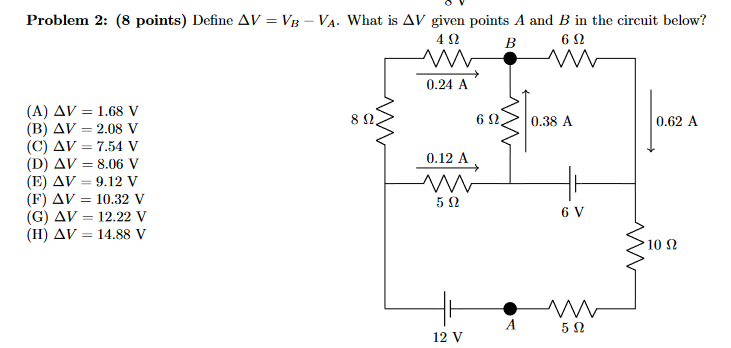

Problem 2: (8 points) Define AV = VB - VA. What is AV given points A and B in the circuit below? 4 12 B 6 9 0.24 A (A) AV = 1.68 V (B) AV = 2.08 V 8 0 0.38 A 0.62 A (C) AV = 7.54 V (D) AV = 8.06 V 0.12 A (E) AV = 9.12 V (F) AV = 10.32 V 5 0 (G) AV = 12.22 V 6 V (H) AV = 14.88 V 10 0 A 5 0 12 V

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
