Question: Problem 2 A 1 4 1 / 2 degree full - depth involute spur gear has an outside diameter of 8 . 5 inches and

Problem 2

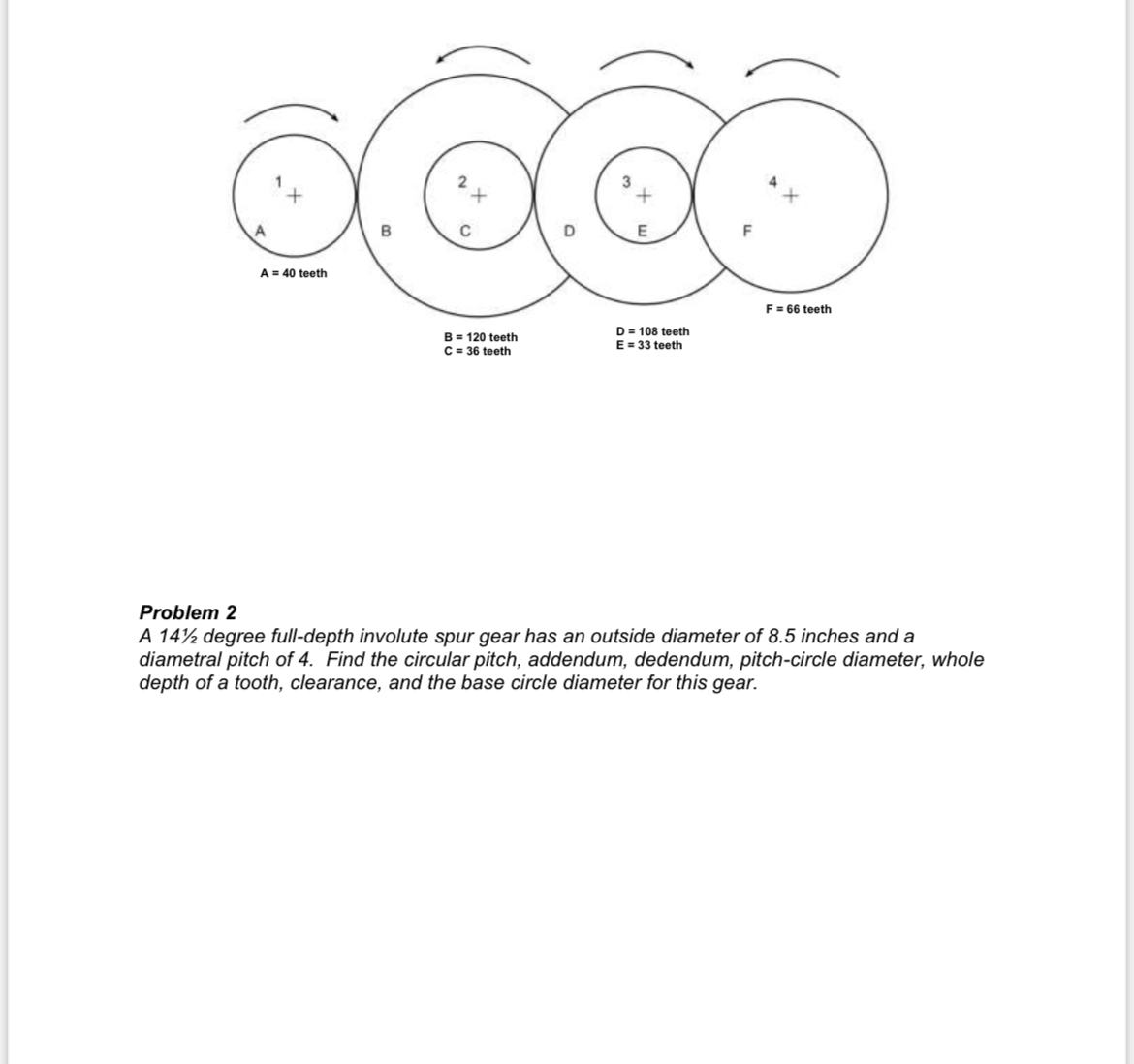

A 141/2 degree full-depth involute spur gear has an outside diameter of 8.5 inches and a diametral pitch of 4. Find the circular pitch, addendum, dedendum, pitch-circle diameter, whole depth of a tooth, clearance, and the base circle diameter for this gear.
Problem 2 A 1 4 1 / 2 degree full - depth

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
