Question: Problem 2 : A 2 0 C water jet strikes a vane mounted on a tank with frictionless wheels, as in the figure. The diameter

Problem 2:

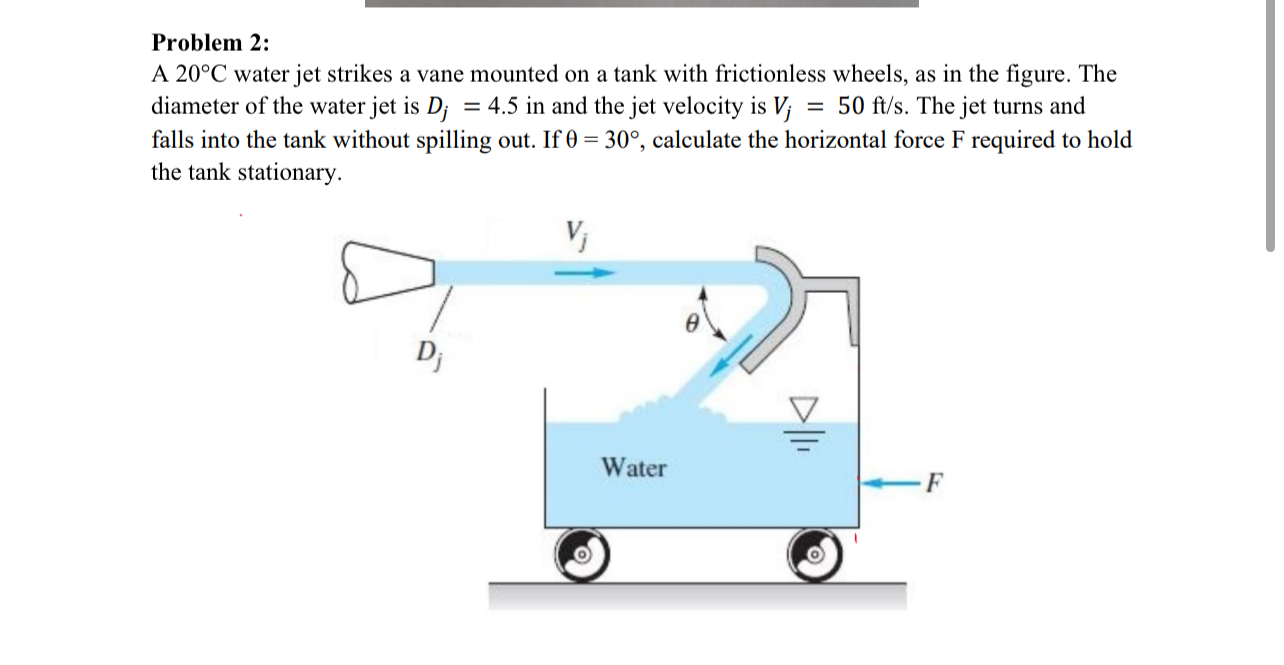

A 20C water jet strikes a vane mounted on a tank with frictionless wheels, as in the figure. The diameter of the water jet is Dj=4.5in and the jet velocity is Vj=50fts. The jet turns and falls into the tank without spilling out. If =30, calculate the horizontal force F required to hold the tank stationary.
