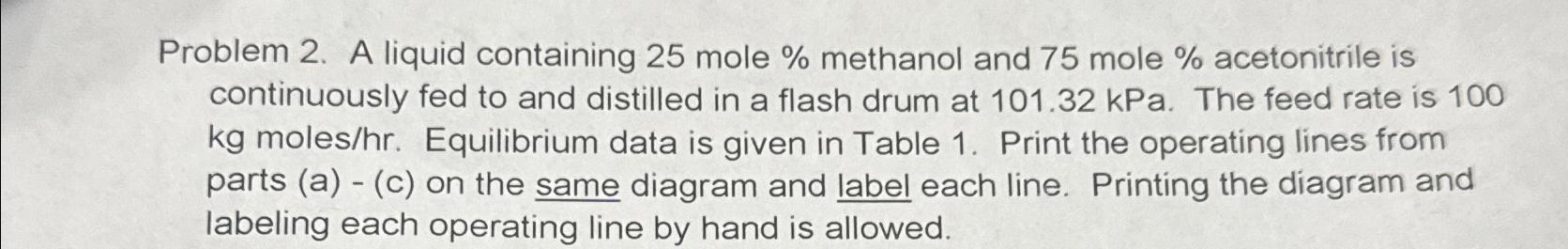

Problem 2. A liquid containing 25 mole

%

methanol and 75 mole

%

acetonitrile is continuously fed to and distilled in a flash drum at

101.32kPa

. The feed rate is 100

kg

moles/hr. Equilibrium data is given in Table 1. Print the operating lines from parts (a) - (c) on the same diagram and label each line. Printing the diagram and labeling each operating line by hand is allowed.

Problem 2. A liquid containing 25 mole % methanol and 75 mole % acetonitrile is continuously fed to and distilled in a flash drum at 101.32kPa. The feed rate is 100 kg moles/hr. Equilibrium data is given in Table 1. Print the operating lines from parts (a) - (c) on the same diagram and label each line. Printing the diagram and labeling each operating line by hand is allowed
