Question: Problem 2 : An ASTM cast iron, grade 3 0 , carries static loading resulting in the stress states listed below at the critical locations.

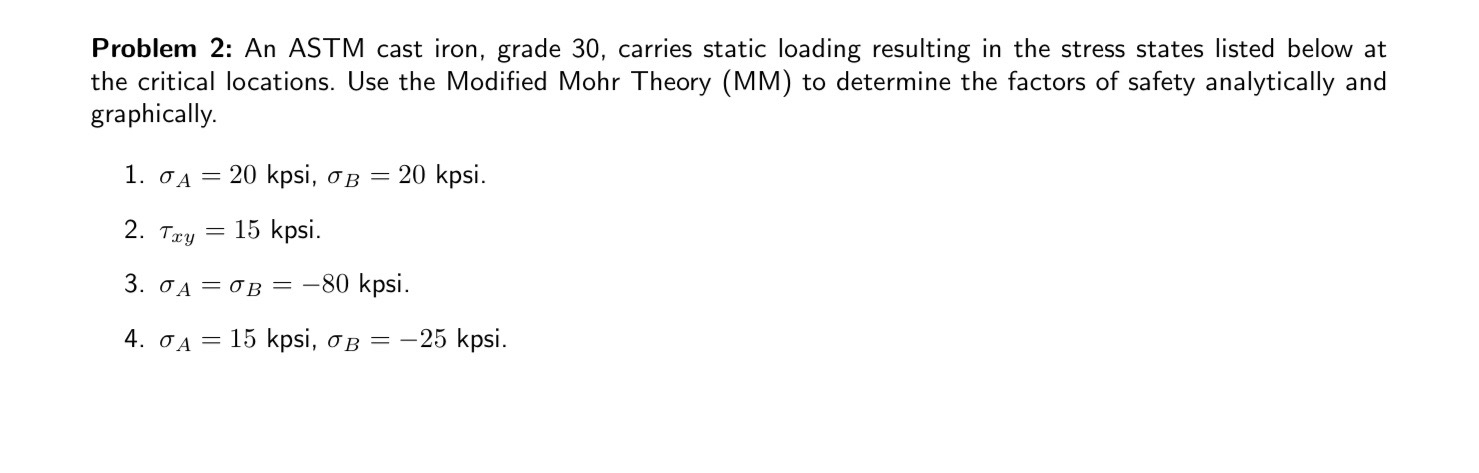

Problem 2: An ASTM cast iron, grade 30, carries static loading resulting in the stress states listed below at the critical locations. Use the Modified Mohr Theory (MM) to determine the factors of safety analytically and GRAPHICALLY.PLEASE DO'NT FORGET THE GRAPIC PART!!!!!
A=20k,B=20k.
xy=15k.
A=B=-80k.
A=15k,B=-25k.
Problem 2 : An ASTM cast iron, grade 3 0 ,

Step by Step Solution

There are 3 Steps involved in it
