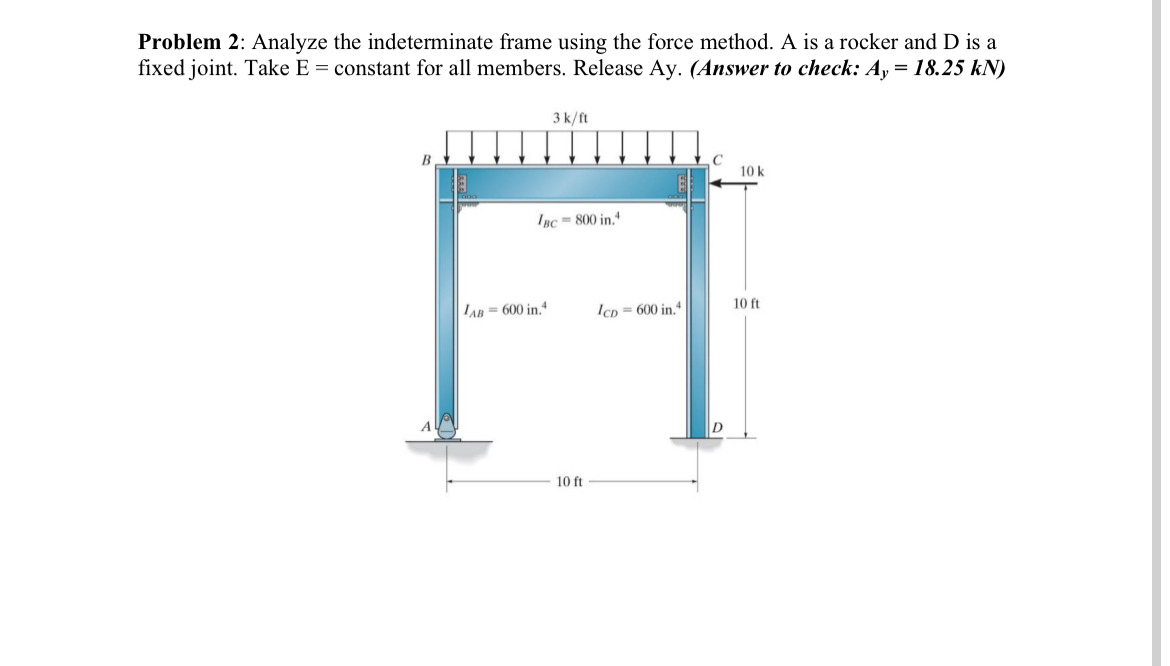

Question: Problem 2 : Analyze the indeterminate frame using the force method. A is a rocker and D is a fixed joint. Take E = constant

Problem 2: Analyze the indeterminate frame using the force method. A is a rocker and D is a fixed joint. Take E = constant for all members. Release Ay.(Answer to check: Ay=18.25kN)Please draw out diagrams and show how to solve
Problem 2 : Analyze the indeterminate frame using

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
