Question: Problem 2 : Consider a cantilever beam on the figure below, where L = 1 2 . 5 + - 0 . 2 m m

Problem 2:

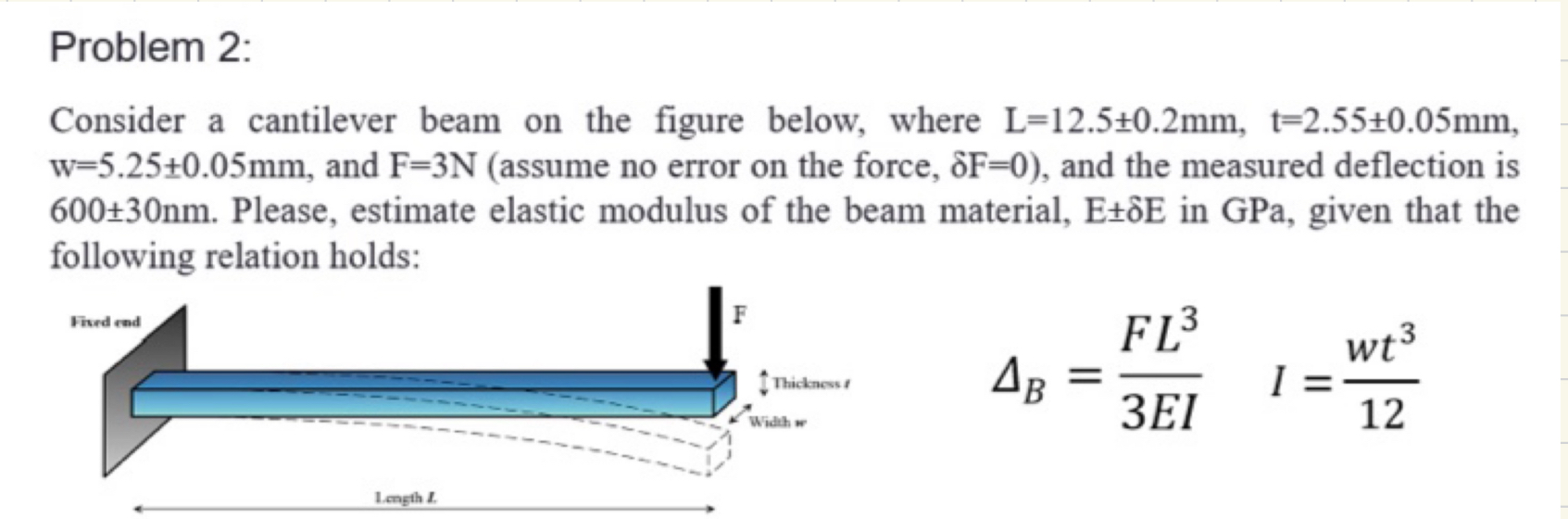

Consider a cantilever beam on the figure below, where L=12.5+-0.2mm,t=2.55+-0.05mm,w=5.25+-0.05mm, and F=3N(assume no error on the force, F=0), and the measured deflection is 600+-30nm. Please, estimate elastic modulus of the beam material, E+-E in GPa , given that the following relation holds:
B=FL33EI,I=wt312
Problem 2 : Consider a cantilever beam on the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
