Question: Problem 2. Consider an 8-light lighting system that is controlled by an array of 8-bit registers. The first element of the array controls light #1,

 Problem 2. Consider an 8-light lighting system that is controlled by

an array of 8-bit registers. The first element of the array controls

light #1, the second element of the array controls light #2, and

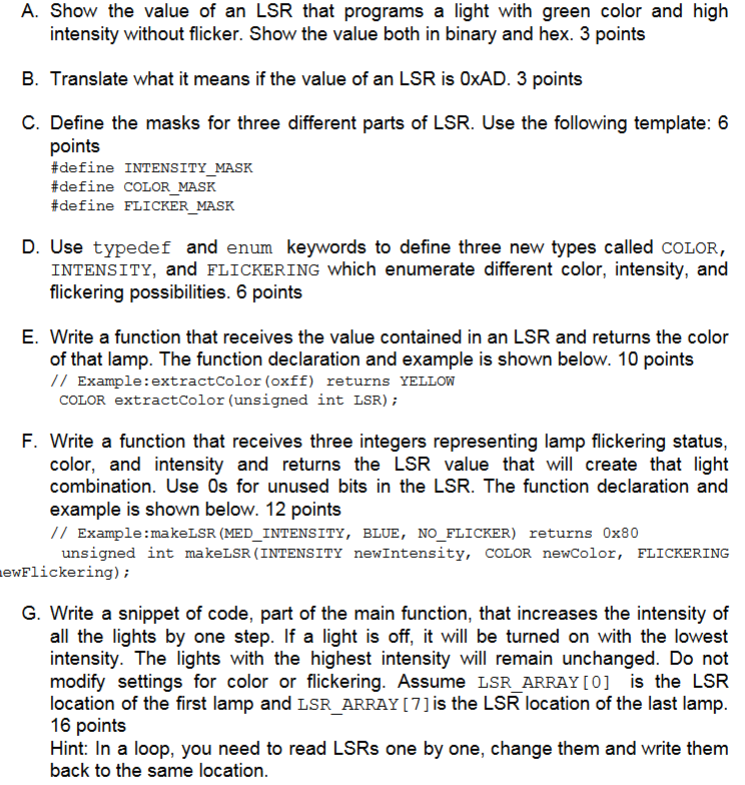

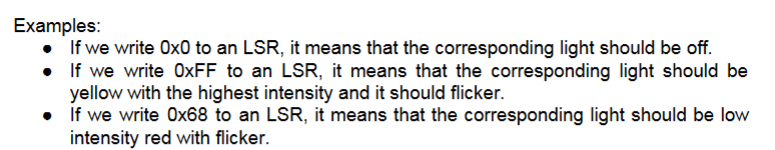

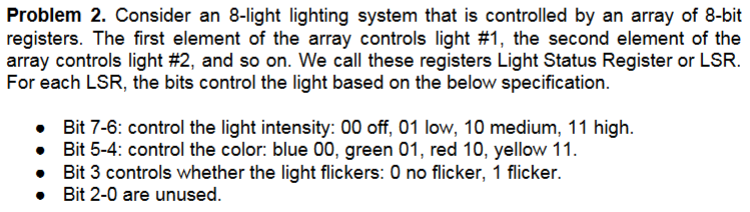

Problem 2. Consider an 8-light lighting system that is controlled by an array of 8-bit registers. The first element of the array controls light #1, the second element of the array controls light #2, and so on. We call these registers Light Status Register or LSR. For each LSR, the bits control the light based on the below specification. .Bit 7-6: control the light intensity: 00 off, 01 low, 10 medium, 11 high. . Bit 5-4: control the color: blue 00, green 01, red 10 yellow 11. Bit 2-0 are unused
