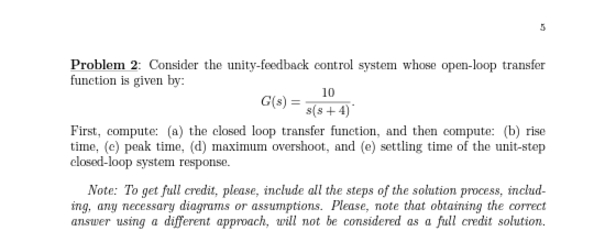

Question: Problem 2 : Consider the unity - feedback control system whose open - loop transfer function is given by: [ G ( s )

Problem 2: Consider the unity-feedback control system whose open-loop transfer function is given by:
\[
G(s)=\frac{10}{s(s+4)}
\]
First, compute: (a) the closed loop transfer function, and then compute: (b) rise time, (c) peak time, (d) maximum overshoot, and (e) settling time of the unit-step closed-loop system response.
Note: To get full credit, please, include all the steps of the solution process, including, any necessary diagrams or assumptions. Please, note that obtaining the correct answer using a different approach, will not be considered as a full credit solution.
