Question: Problem 2 : Construct the 6 6 stiffness matrix for the frame's element 1 - 3 ( only ) , where the axial effects are

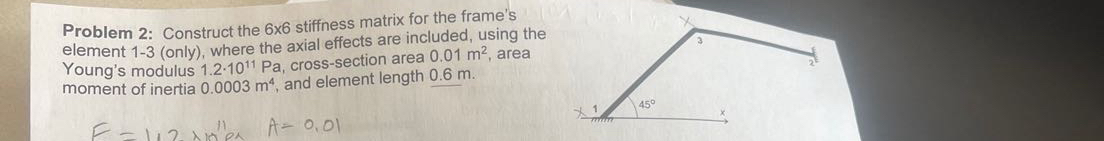

Problem 2: Construct the 66 stiffness matrix for the frame's element 1-3(only), where the axial effects are included, using the Young's modulus 1.2*1011Pa, cross-section area 0.01m2, area moment of inertia 0.0003m4, and element length 0.6m.
Problem 2 : Construct the 6 6 stiffness matrix
