Question: Problem 2 Draw the shear and noment diagrant for the given structure. For the moment diagratur, use the value of the internal monent at point

Problem 2

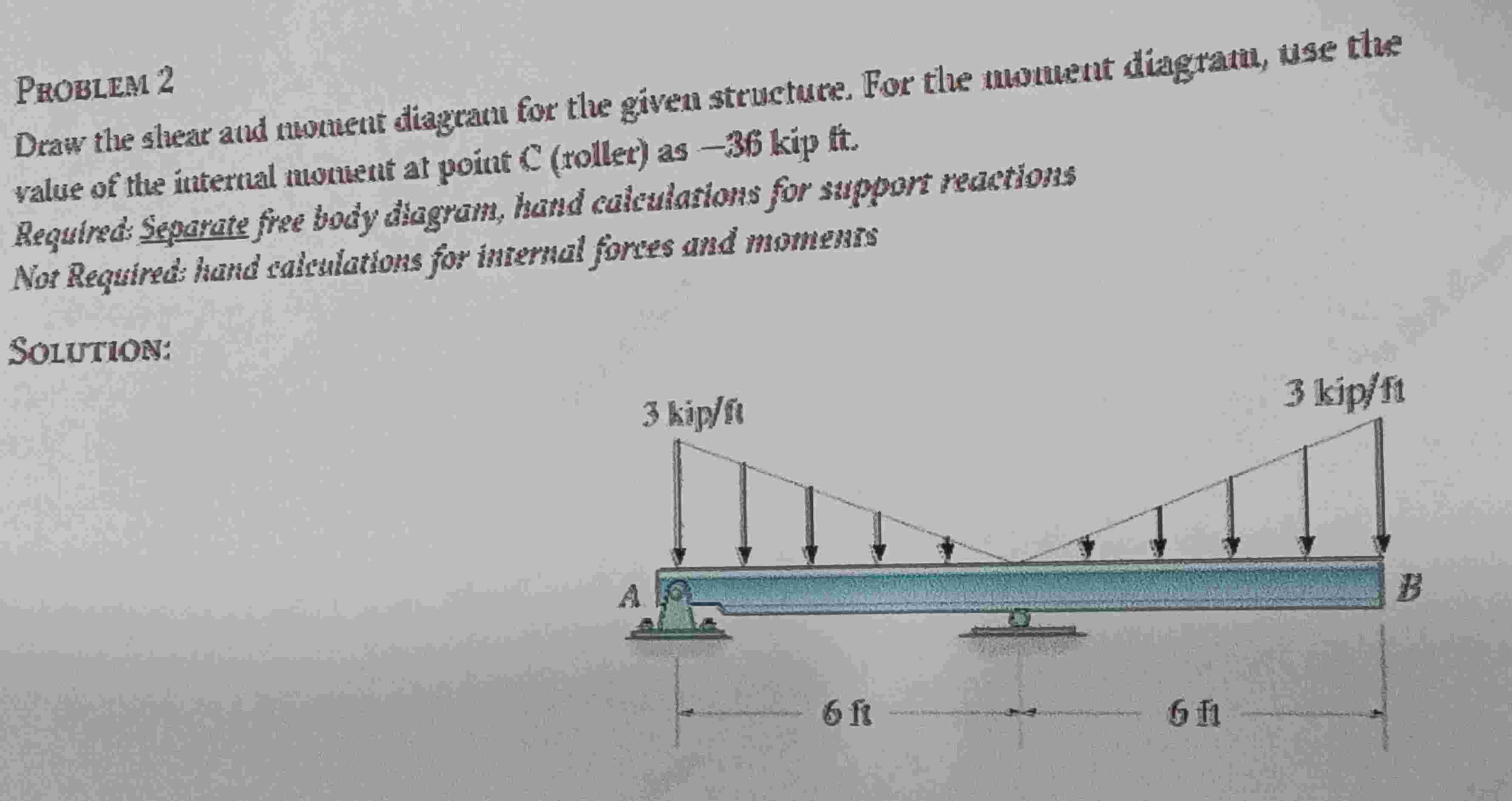

Draw the shear and noment diagrant for the given structure. For the moment diagratur, use the value of the internal monent at point C (troller) as -36 kip ft.
Required Separate free body diagram, hathd calculations for support rediontions
Not Required hand ralculations for internal forces und momenss
SOLUTLOA:
Problem 2 Draw the shear and noment diagrant for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
