Question: Problem 2 For the beam and loading shown, determine the vertical reaction at the support B and the most economical wide flanged steel shape for

Problem

2

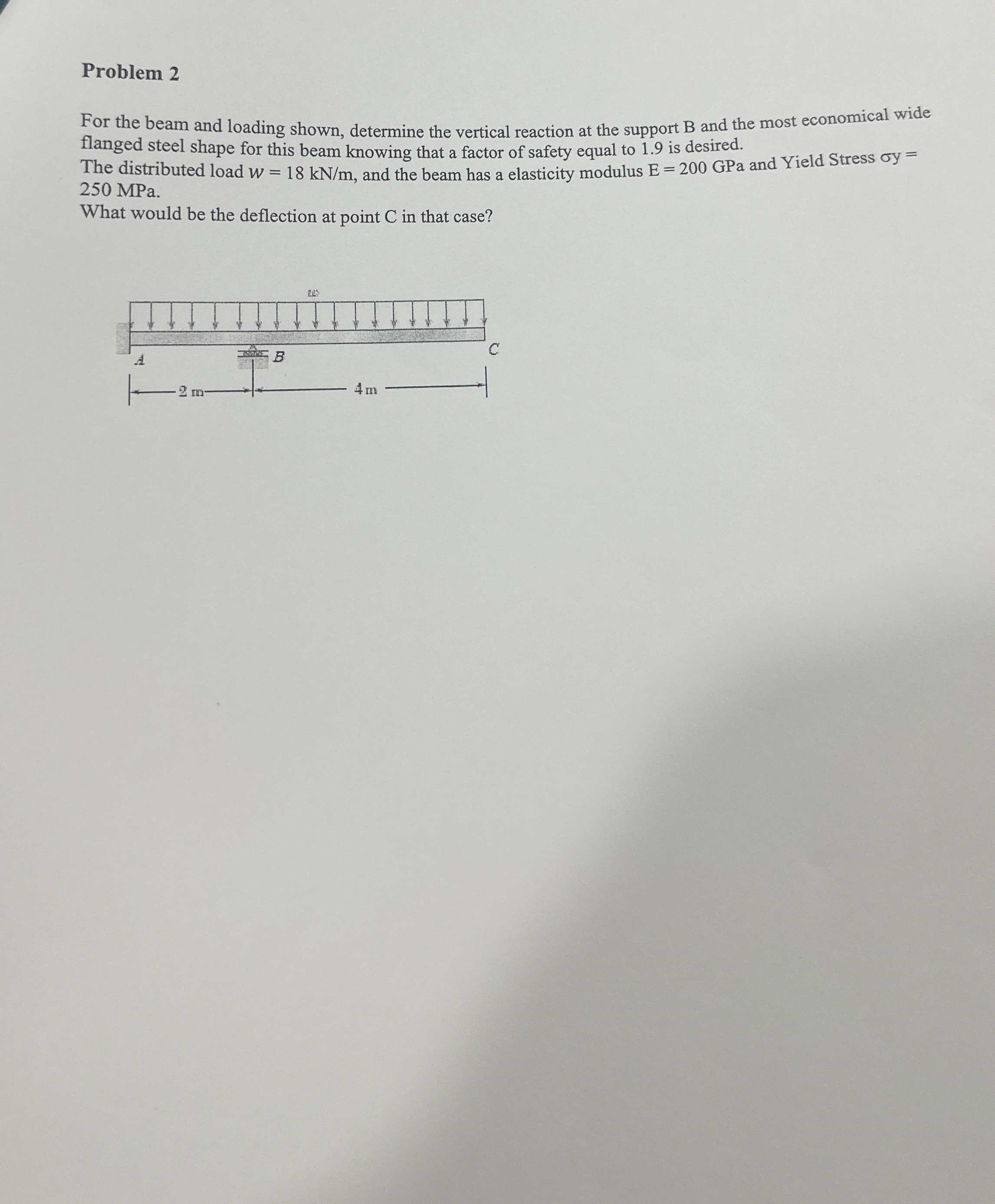

For the beam and loading shown, determine the vertical reaction at the support B and the most economical wide flanged steel shape for this beam knowing that a factor of safety equal to

1.9

is desired. The distributed load

w = 18 k \frac{N}{m},

and the beam has a elasticity modulus

E = 200

GPa and Yield Stress

y = 250

MPa

.

What would be the deflection at point C in that case?

Problem 2 For the beam and loading shown,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
