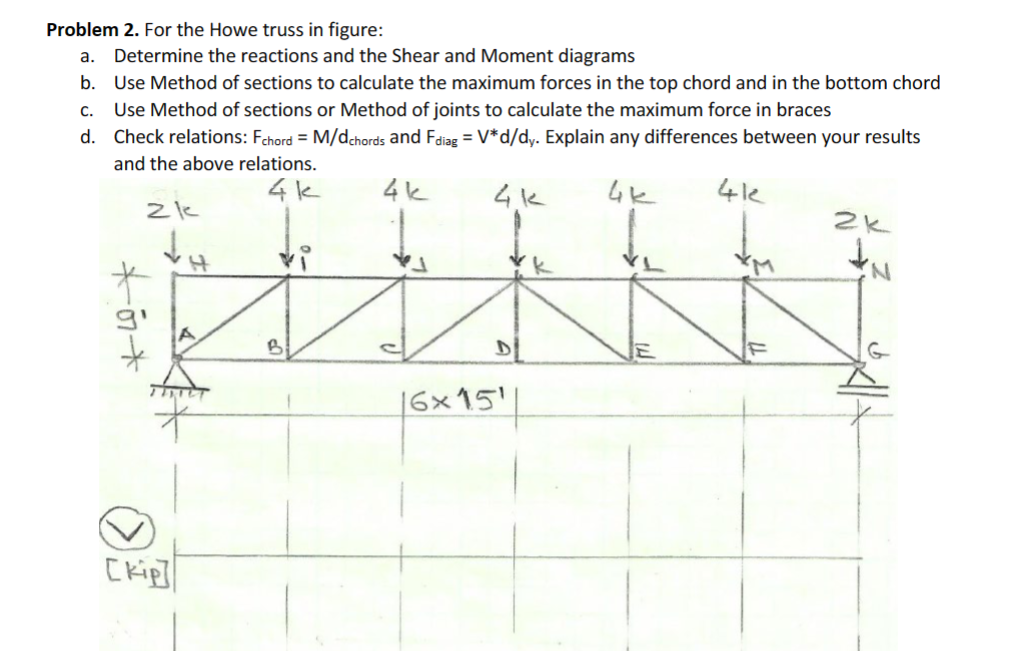

Problem $2.$ For the Howe truss in figure:

a$.$ Determine the reactions and the Shear and Moment diagrams

b$.$ Use Method of sections to calculate the maximum forces in the top chord and in the bottom chord

c$.$ Use Method of sections or Method of joints to calculate the maximum force in braces

d$.$ Check relations: $F_{\text{c}\text{h}\text{o}\text{r}\text{d}}=\frac{M}{d_{\text{c}\text{h}\text{o}\text{r}\text{d}\text{s}}}$ and $F_{\text{d}\text{i}\text{a}\text{g}}=V^{**}\frac{d}{d_y}.$ Explain any differences between your results

and the above relations.For the Howe truss in figure:

a$.$ Determine the reactions and the Shear and Moment diagrams

b$.$ Use Method of sections to calculate the maximum forces in the top chord and in the bottom chord

c$.$ Use Method of sections or Method of joints to calculate the maximum force in braces

d$.$ Check relations: Fchord $=$ M$/$dchords and F diag $=$ V$*$d$/$dy$.$ Explain any differences between your results

and the above relations.
