Question: Problem 2 If the payload at G is 2 kN and the distance d 1 m, determine the ollowing: a. The internal forces at

Problem 2 If the payload at G is 2 kN and the

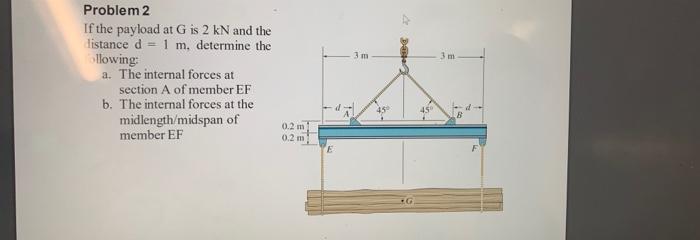

Problem 2 If the payload at G is 2 kN and the distance d 1 m, determine the ollowing: a. The internal forces at section A of member EF b. The internal forces at the midlength/midspan of member EF 0.2 m2 0.2 m 3 m 3 m B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
