Question: Problem 2 : PROBLEM For the frame and loading shown, determine the components of all forces acting on member ABC.

Problem 2:
PROBLEM

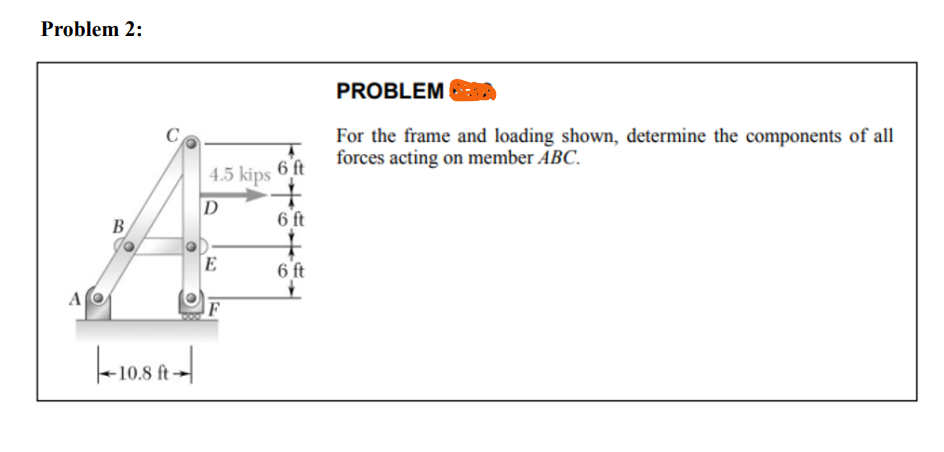

For the frame and loading shown, determine the components of all
forces acting on member ABC.
Problem 2 : PROBLEM For the frame and loading

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
