Question: Problem 2 - RC beam design Figure 1 shows a beam with a cross - section of 3 0 0 mmxx 6 0 0 mm

Problem 2- RC beam design

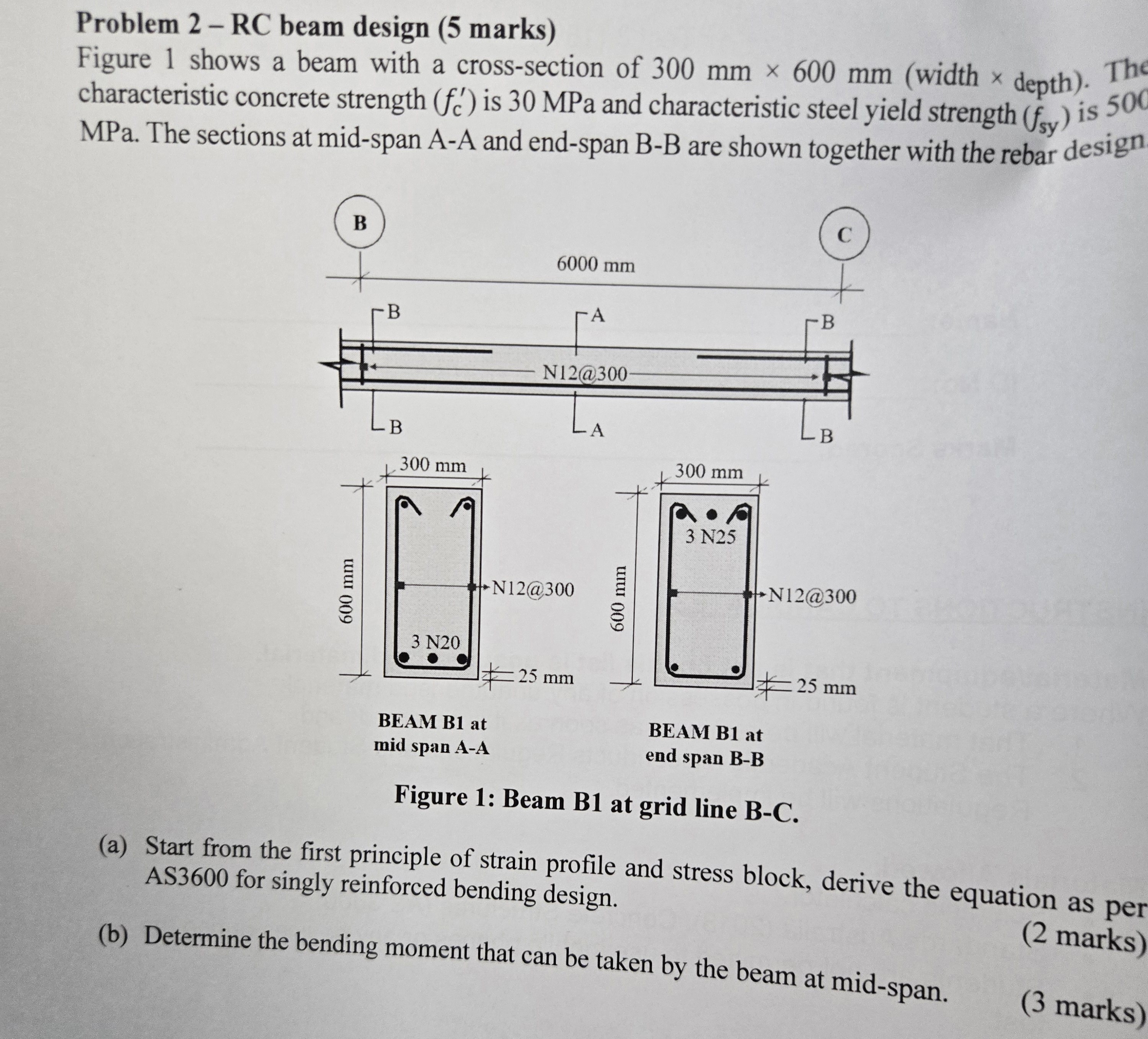

Figure 1 shows a beam with a cross-section of 300mmxx600mm (width x depth). characteristic concrete strength is 30 MPa and characteristic steel yield strength is 500MPa. The sections at mid-span A-A and end-span B-B are shown together with the rebar design
(a) Start from the first principle of strain profile and stress block, derive the equation as per design code AS3600 for singly reinforced bending design.
(b) Determine the bending moment that can be taken by the beam at mid-span.
Problem 2 - RC beam design Figure 1 shows a beam
