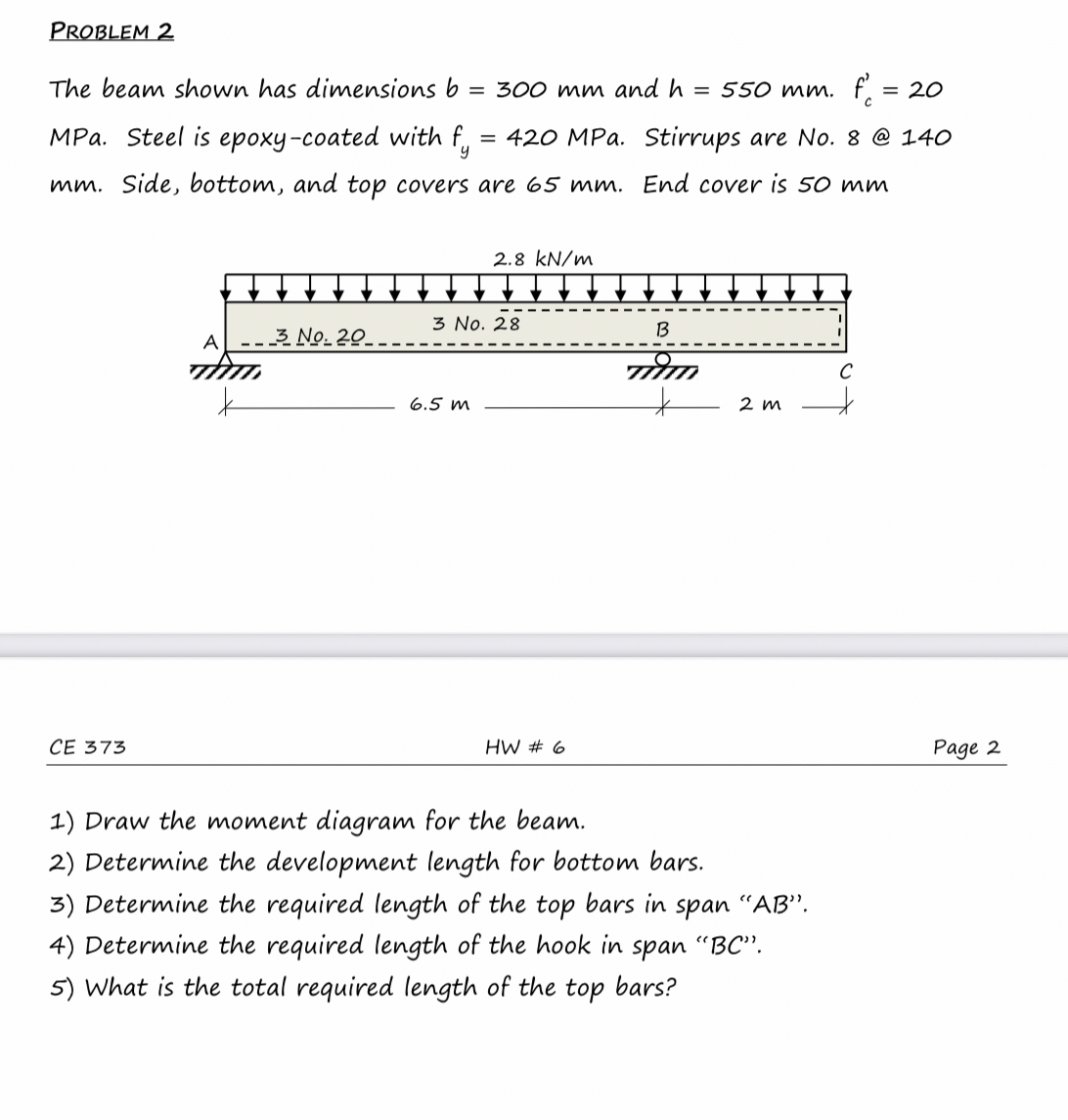

PROBLEM 2
The beam shown has dimensions b=300mm and h=550mm.fc'=20 MPa. Steel is epoxy-coated with fy=420MPa. Stirrups are No.8 @ 140 mm . Side, bottom, and top covers are 65 mm . End cover is 50 mm
CE 373
Draw the moment diagram for the beam.
Determine the development length for bottom bars.
Determine the required length of the top bars in span "AB".
Determine the required length of the hook in span "BC".
What is the total required length of the top bars?
Solve with all steps
Civil engineering, concrete 1
PROBLEM 2 The beam shown has dimensions b = 3 0 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
