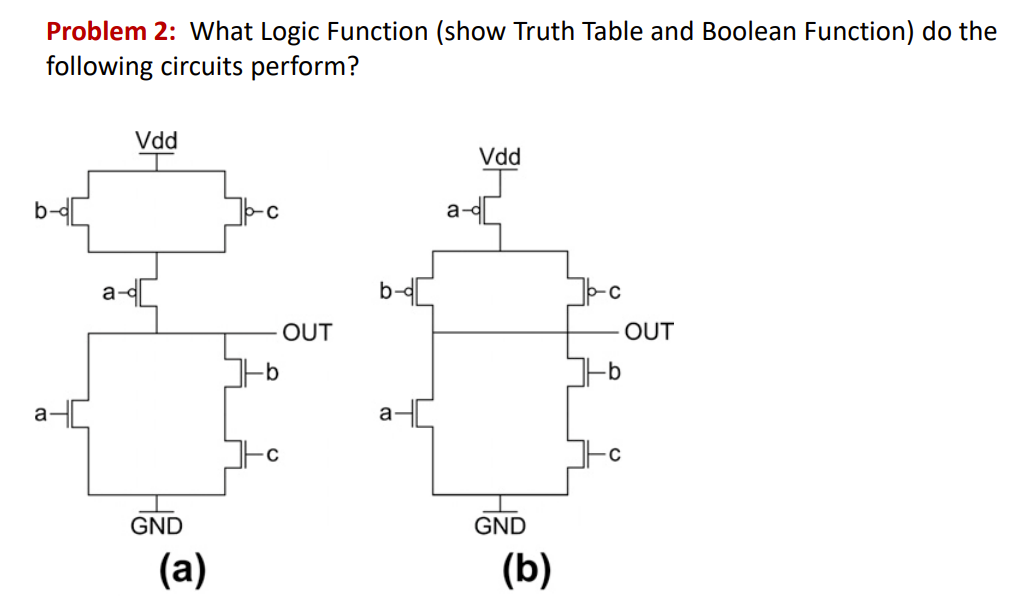

Question: Problem 2 : What Logic Function ( show Truth Table and Boolean Function ) do the following circuits perform? ( a ) ( b )

Problem 2: What Logic Function (show Truth Table and Boolean Function) do the
following circuits perform?
(a)
(b)
Problem 2 : What Logic Function ( show Truth

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
