Question: Problem 2b. For each distributed load, what is the equivalent resultant force and where is it located on the x axis? (6 points total)

Problem 2b. For each distributed load, what is the equivalent resultant force

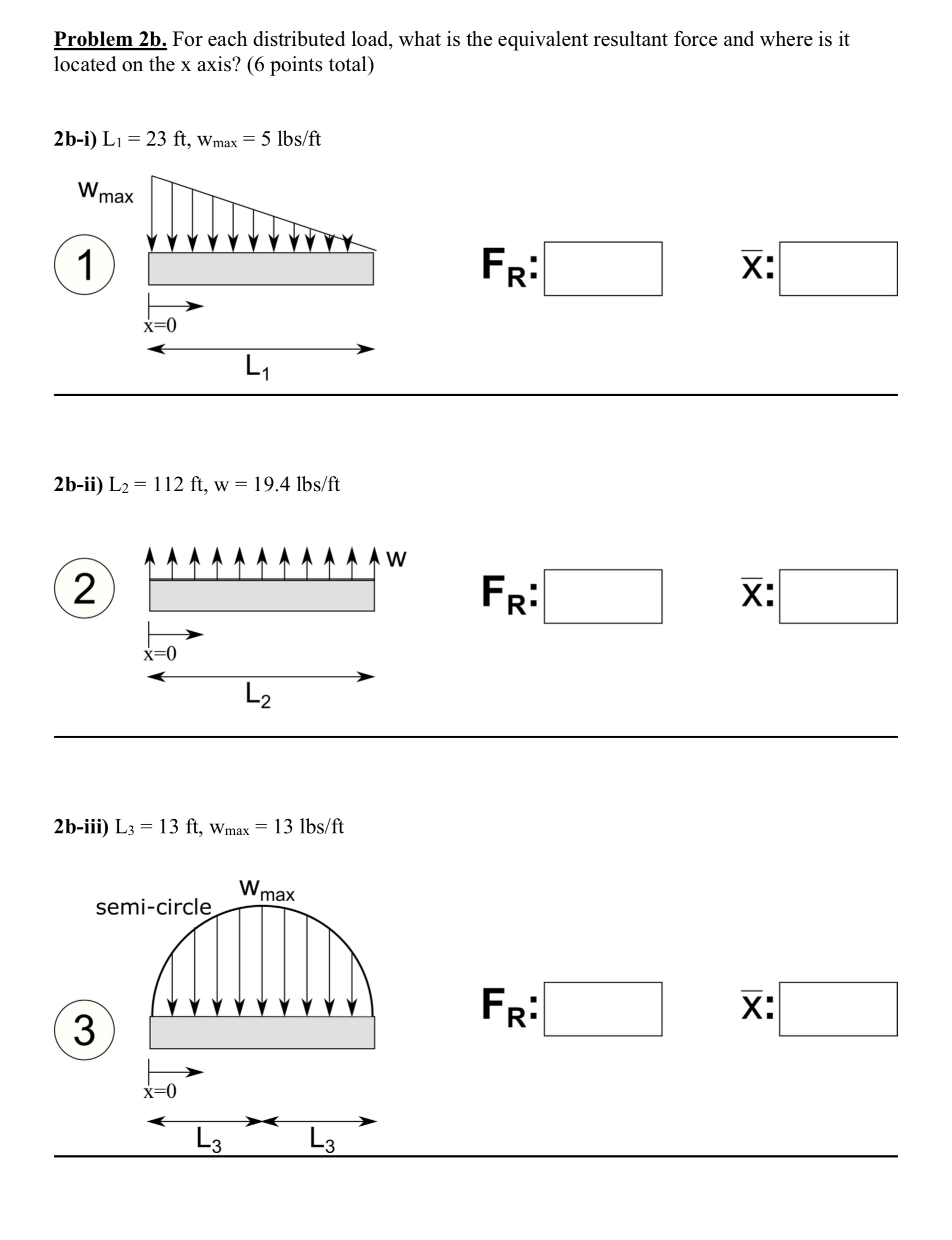

Problem 2b. For each distributed load, what is the equivalent resultant force and where is it located on the x axis? (6 points total) 2b-i) L = 23 ft, Wmax 5 lbs/ft Wm 1 max FR: X: x=0 L 2b-ii) L = 112 ft, w 2 = 19.4 lbs/ft x=0 L2 2b-iii) L3 = 13 ft, Wmax - 13 lbs/ft W max semi-circle 3 x=0 L3 L3 FR: FR: X: X:

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
