Question: Problem 3 . 1 1 - Plate ABCD is supported by cable CE and a pin support at point A . Find a ) the

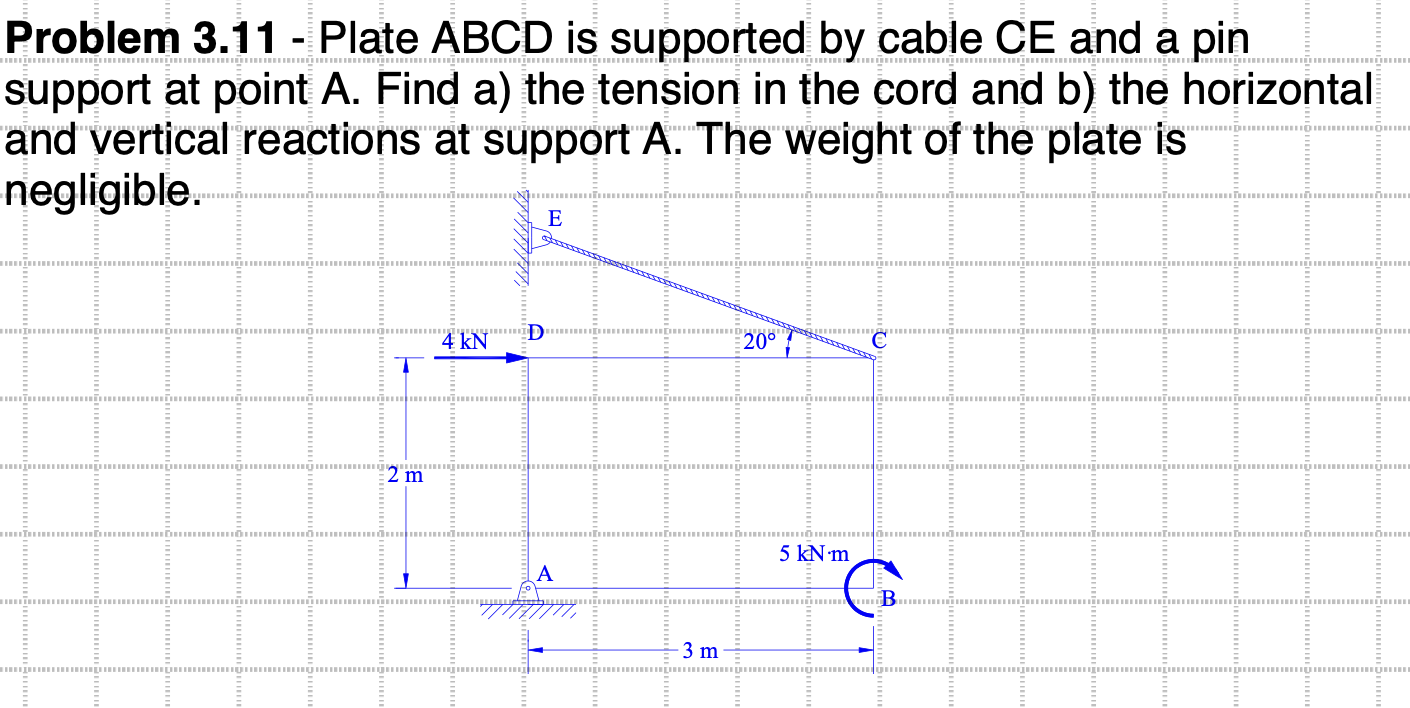

Problem 3.11- Plate ABCD is supported by cable CE and a pin
support at point A. Find a) the tension in the cord and b) the horizontal
and vertical reactions at support A. The weight of the plate is
negligible.
Problem 3 . 1 1 - Plate ABCD is supported by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
