Question: Problem 3 (12%) In the circuit below. 81 = 5V, 82= 3V. C = ]UF and C2 = 2u.F. The switch is first connected to

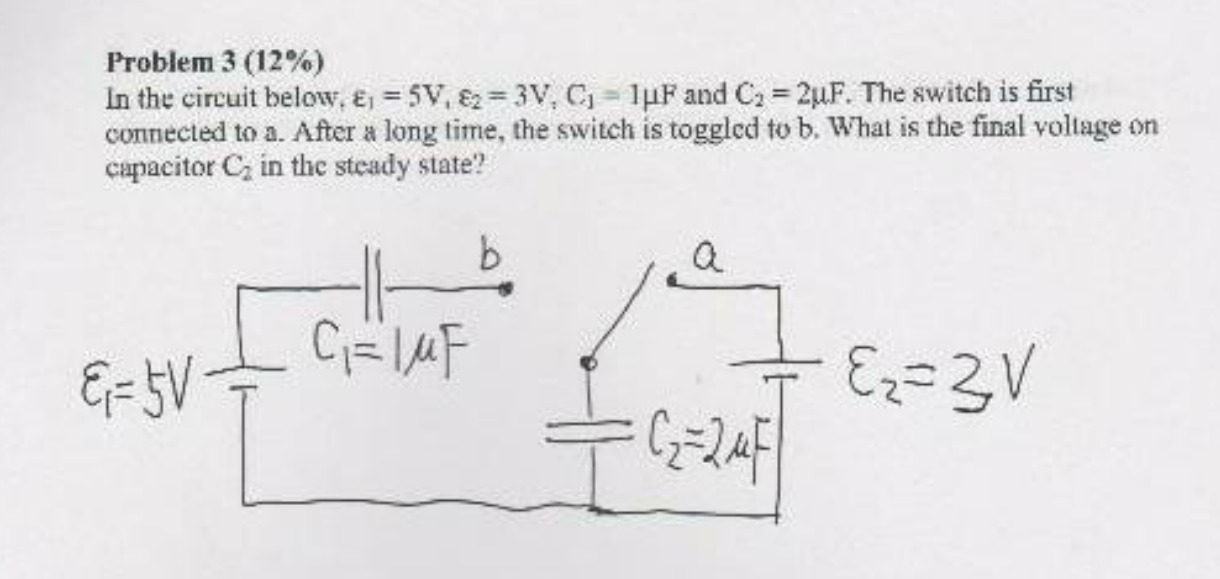

Problem 3 (12%) In the circuit below. 81 = 5V, 82= 3V. C = ]UF and C2 = 2u.F. The switch is first connected to a. After a long time, the switch is toggled to b. What is the final voltage on capacitor C in the steady state? D a E=EV Ez = 2 V

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
