Question: Problem 3 : 2 0 points Determine the slope and displacement at point B . EI is constant. Use the method of virtual work. Answers:

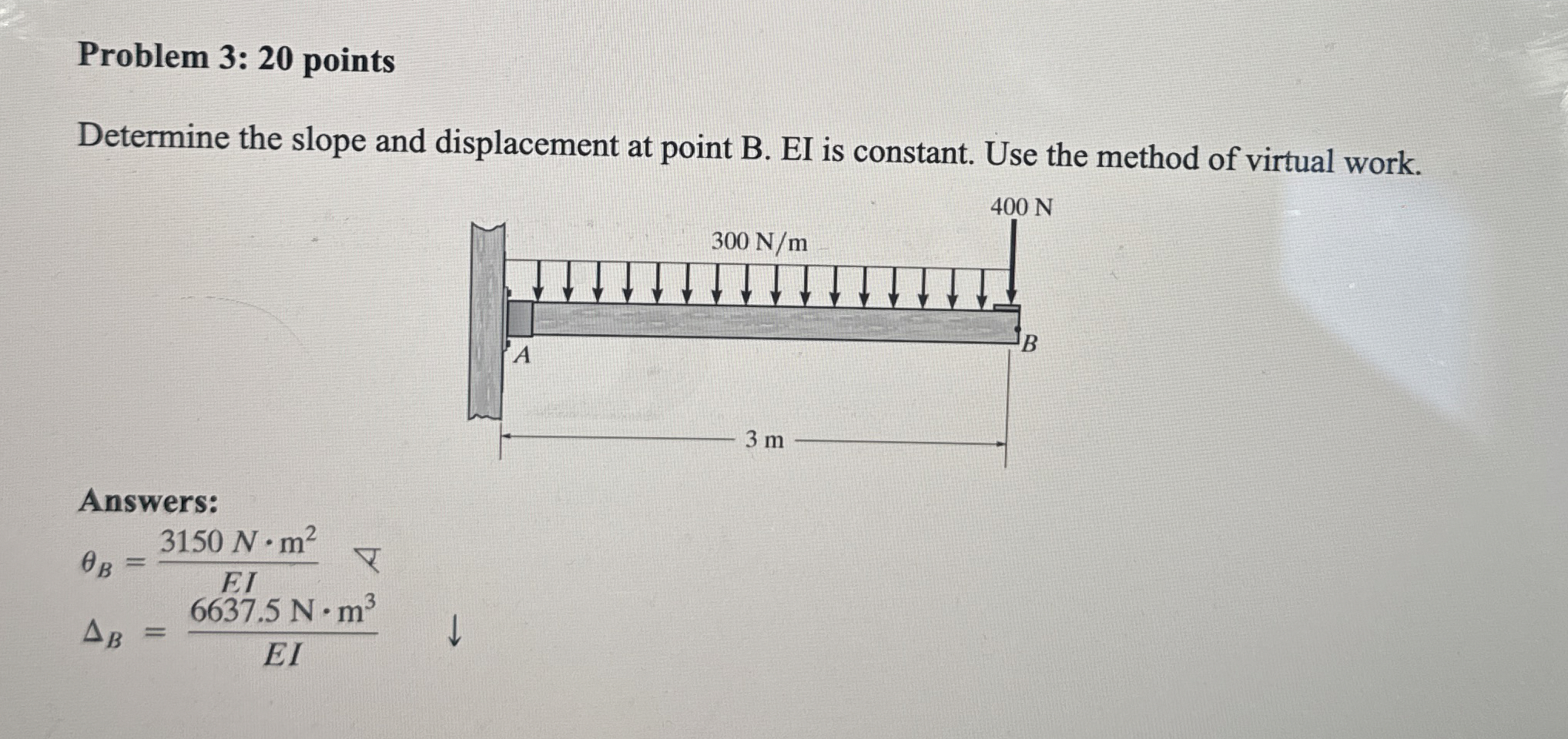

Problem 3: 20 points
Determine the slope and displacement at point B. EI is constant. Use the method of virtual work.
Answers:
B=3150(N)*m2EIgrad
B=6637.5(N)*m3EI
help asap
Problem 3 : 2 0 points Determine the slope and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
