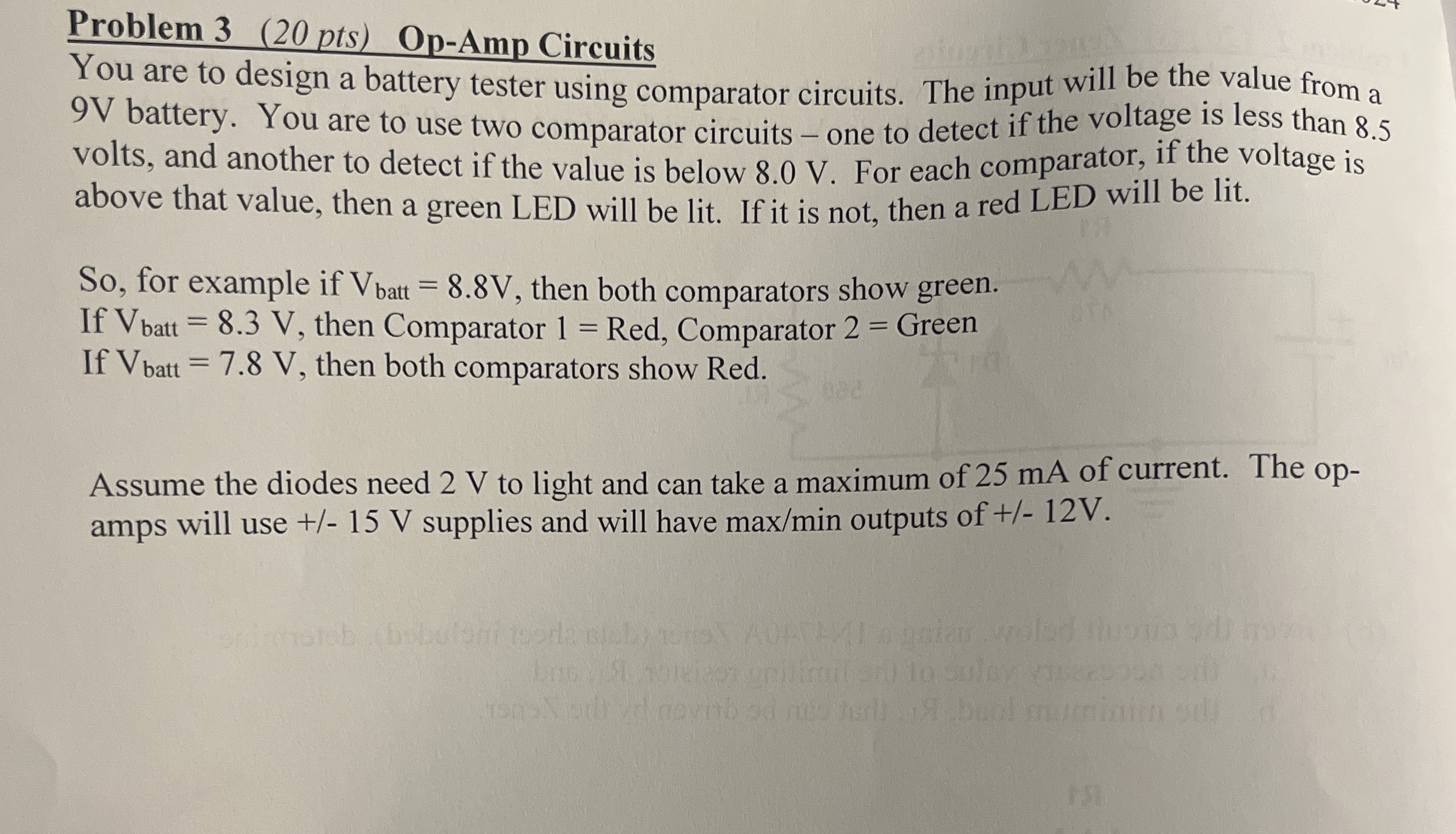

Problem $3(20$ pts$)$ Op$-$Amp Circuits

You are to design a battery tester using comparator circuits. The input will be the value from a $9$ V battery. You are to use two comparator circuits $-$ one to detect if the voltage is less than $8\mathrm{.}5$ volts, and another to detect if the value is below $8\mathrm{.}0$ V $.$ For each comparator, if the voltage is above that value, then a green LED will be lit. If it is not, then a red LED will be lit.

So$,$ for example if $V_{\text{b}\text{a}\text{t}\text{t}}=8\mathrm{.}8V,$ then both comparators show green.

If $V_{\text{b}\text{a}\text{t}\text{t}}=8\mathrm{.}3V,$ then Comparator $1=$ Red, Comparator $2=$ Green

If $V_{\text{b}\text{a}\text{t}\text{t}}=7\mathrm{.}8V,$ then both comparators show Red.

Assume the diodes need $2$ V to light and can take a maximum of $25$ mA of current. The opamps will use $\frac{+}{-}15V$ supplies and will have $ma\frac{x}{m}in$ outputs of $\frac{+}{-}12V.$
