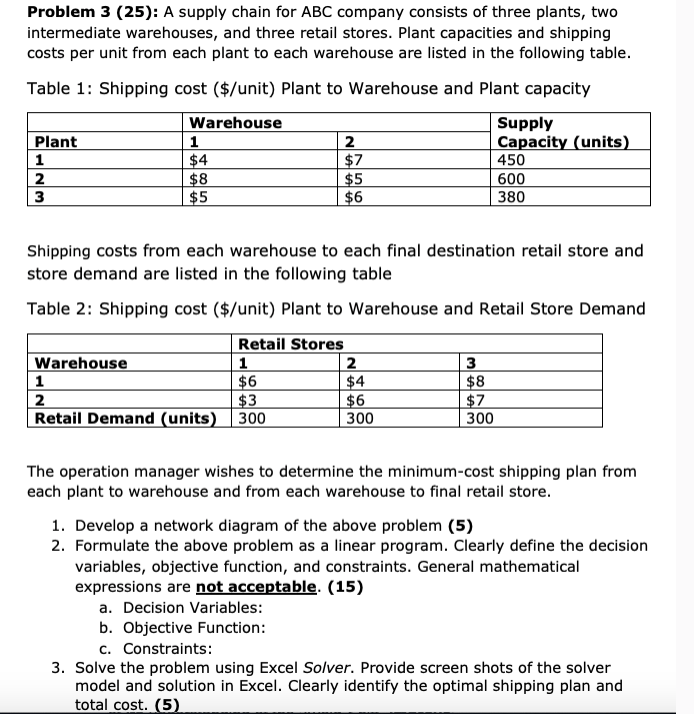

Problem $3(25)$: A supply chain for ABC company consists of three plants, two

intermediate warehouses, and three retail stores. Plant capacities and shipping

costs per unit from each plant to each warehouse are listed in the following table.

Table $1$: Shipping cost $($$$/$unit$)$ Plant to Warehouse and Plant capacity

Shipping costs from each warehouse to each final destination retail store and

store demand are listed in the following table

Table $2$: Shipping cost $($$$/$unit$)$ Plant to Warehouse and Retail Store Demand

The operation manager wishes to determine the minimum$-$cost shipping plan from

each plant to warehouse and from each warehouse to final retail store.

Develop a network diagram of the above problem $(5)$

Formulate the above problem as a linear program. Clearly define the decision

variables, objective function, and constraints. General mathematical

expressions are not acceptable. $(15)$

a$.$ Decision Variables:

b$.$ Objective Function:

c$.$ Constraints:

Solve the problem using Excel Solver. Provide screen shots of the solver

model and solution in Excel. Clearly identify the optimal shipping plan and

total cost. $(5)$
