Question: Problem 3 ( 2 5 points ) Apply mesh analysis to evaluate v _ ( 0 ) in the circuit below: 2 0 i _

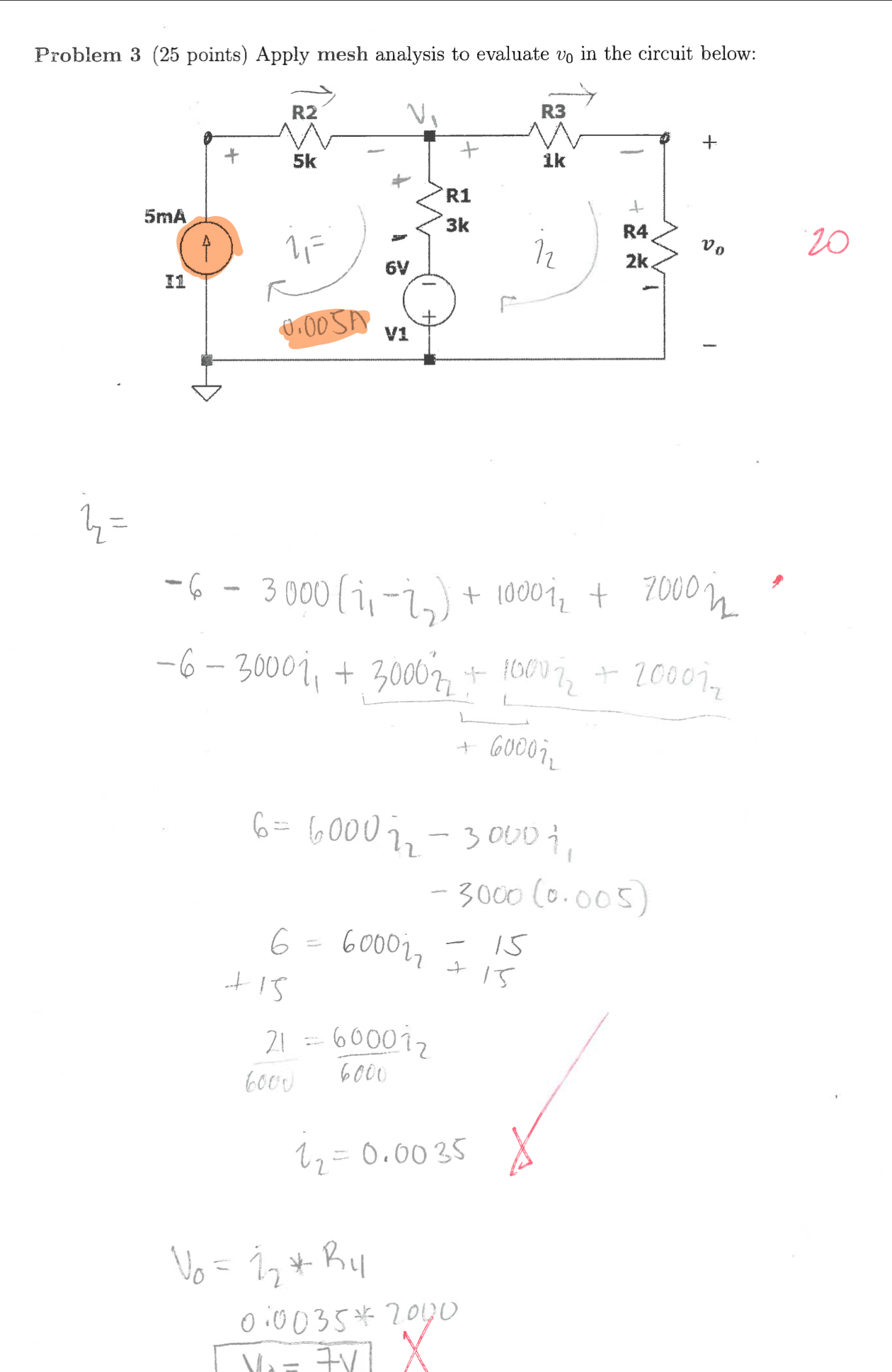

Problem 3(25 points) Apply mesh analysis to evaluate v_(0) in the circuit below:
20
i_(2)=
-6-3000(i_(1)-i_(2))+1000i_(2)+7000i_(2)
-6-3000i_(1)+ubrace(3000i_(2)+1000i_(2)+2000i_(2)ubrace)_(+6000i_(2))
6=6000i_(2)-3000i_(1)
-3000(0.005)
{(:[6=6000i_(2)=15):}
5]
(21)/(6000)=(6000)/(600)i_(2)
i_(2)=0.0035
V_(0)=i_(2)*R_(14)
(0.0035*2000)/(V)=7V
