Question: Problem 3 2 . ( L . O . 3 . 3 . 2 . 3 , 3 . 4 . 3 . 1 )

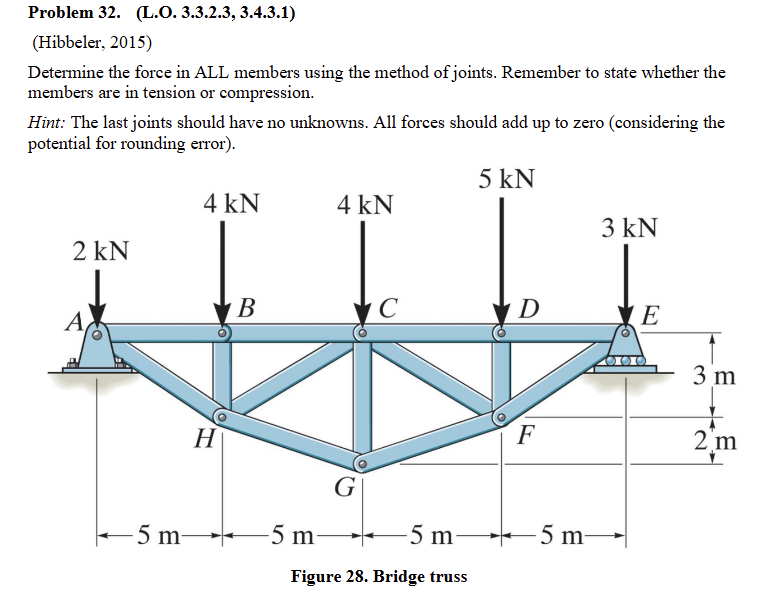

Problem 32.(L.O.3.3.2.3,3.4.3.1)
(Hibbeler,2015)
Determine the force in ALL members using the method of joints. Remember to state whether the members are in tension or compression.
Hint: The last joints should have no unknowns. All forces should add up to zero (considering the potential for rounding error).
Problem 3 2 . ( L . O . 3 . 3 . 2 . 3 , 3 . 4 . 3
